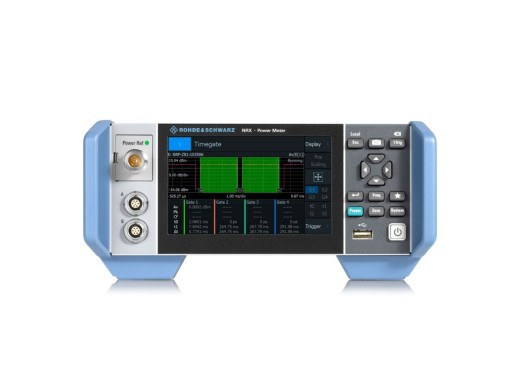

Rohde & Schwarz NRX power meter
Details
The Rohde & Schwarz NRX power meter is a user-friendly meter that can be used with the Rohde & Schwarz NRP series and NRQ6 power sensors. The NRX power meter supports one Rohde & Schwarz power sensor for RF power measurements or pulse analysis. The power meter can measure various parameters, such as the continuous and burst average, timeslot, and time gate average. It can also measure calculated values, such as SWR, return loss, and reflection coefficients. The NRX power meter has an intuitive 5" TFT colour touchscreen display. Key functions are also colour-coded for ease of use. Measured values can be displayed both numerically or graphically based on user configuration. The NRX power meter also features USB and LAN remote interfaces for use in automatic test setups.
Requires either R&S NRP or NRQ6 sensors which are not included! We also offer a bundle with added options.
Specifications
| Frequency range | DC - 110 GHz (sensor dependent) |
| Power measurement range | 0.1 fW - 30 W (sensor dependent) |
| Interfaces | USB host/device, LAN, RJ-45 |
| Display | 5" TFT colour touchscreen (800 x 480) |
| Dimensions | 234 x 106 x 272 mm |
| Weight | 2.35 kg |
Accessories
The Rohde & Schwarz NRX is delivered with:
- AC power supply
- USB cable
Downloads
| R&S NRX - Datasheet |  (1.81 MB) | Download |
| R&S NRX - User manual | (9.01 MB) | Download |
