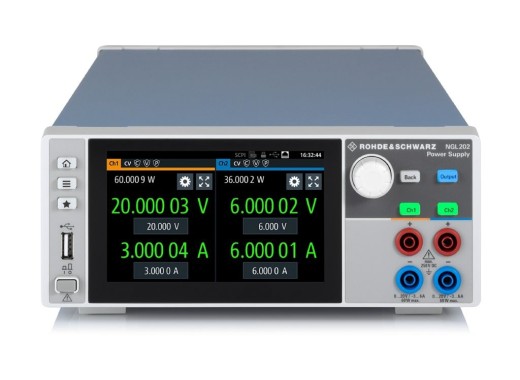

Rohde & Schwarz NGL202 power supply

The Rohde & Schwarz NGL202 is a highly accurate power supply as well as an electronic load. Because of this, it operates as a source and also as a sink.
The NGL202 is a dual-channel power supply that delivers an output power of 120 Watt. Moreover, the two channels are electrically equivalent with the same voltage, current, and power. This means that the channels can be operated individually or simultaneously.
Another model in the NGL200 series is the NGL201 which is a single-channel power supply and load.
Because of its fast recovery time of < 30 μs and minimum overshoot, the NGL200 series power supplies are great for powering IoT devices and other battery-operated devices.

Multimeter

In addition, the NGL201 comes with a practical multimeter with a resolution of up to 6.5 digits. The use of an additional digital multimeter is therefore no longer necessary. Finally, the NGL201 offers features such as remote control, a high-resolution touchscreen, fast load control, and constant voltage, current, and resistance modes.

Battery testing

The NGL series is ideal for charging and discharging batteries with the free Battery Cycle Tool from Rohde & Schwarz. This not only determines the capacity and internal resistance very accurately, but even makes a complete model of the battery.

Model overview

Model	NGL201	NGL202
Channels	1	2
Output voltage	Channel 1: 0 - 20V	Channel 1: 0 - 20V Channel 2: 0 - 20V series mode: 0 - 40V
Output current	Channel 1: 0 - 6A	Channel 1: 0 - 6A Channel 2: 0 - 6A parallel mode: 0 - 12A
Power	Maximum of 60 W	Maximum of 120 W
Electronic load power	Maximum of 60 W	Maximum of 120 W
Price	2430 €2,430.00 Excl. VAT	3720 €3,720.00 Excl. VAT

Specifications

Power supply
Resolution 1mV / 0.1mA Ripple <2mV / <1mA
Electronic load
Input Current range 0 - 3 A Resistance 0 Ω - 10 kΩ Sink modes CV, CC, CR
Protection	OPP, OCP, OVP, OTP
Interfaces	USB host/device, LAN, Digital IO
Display	5" TFT (800 x 480 pixels)
Dimensions	222 x 97 x 436 mm
Weight	7.3 kg

Accessories

The NGL202 power supply comes by default with:

• Power cord
