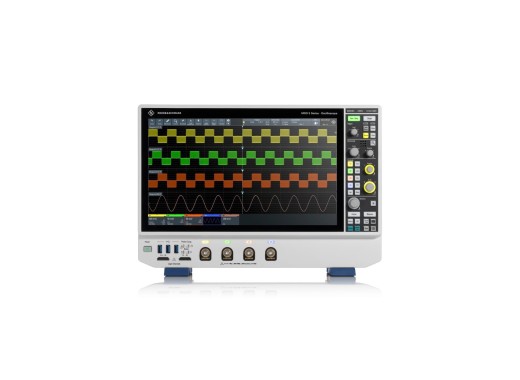

Rohde & Schwarz MXO54-BASC bundle
Details
The MXO54 is a series of oscilloscopes that features an extremely high waveform capture rate of 4.5 million waveforms/s. Each analog channel has a high memory depth of 500 Mpts, which is high compared to other oscilloscopes, and the memory depth can also be expanded to 1 Gpts. The MXO5 series has a vertical resolution of 12 bits and a vertical resolution of 18 bits for high-definition mode. The oscilloscope is very quiet, producing little cooling noise. It has a low noise floor of -160dBm/Hz and an accurate and fast trigger of < 21ns. The MXO5 series oscilloscopes feature a 15.6" full HD TFT display with a capacitive touchscreen and an intuitive user interface that contains for example a function search menu and remote control access over LAN. Furthermore, the MXO54 series features a VESA mount with which the oscilloscopes can be mounted.
MXO54-BASC
This bundle features the following:
- MXO54-350 oscilloscope
- MXO5-B6 ARB Generator
Bundle overview
| Model | MXO54-BASC | MXO54-PRO | MXO54-ULTM |
|---|---|---|---|
| Bandwidth | 350 MHz | 500 MHz | 2 GHz |
| Memory depth | 500 Mpts | 500 Mpts | 1 Gpts |
| Extra features | waveform generator | waveform generator, frequency response analyser, power analysis package, trigger & decoding | waveform generator, frequency response analyser, power analysis package, trigger & decoding, additional memory, logic probes with MSO option. |
| Price |
Specifications
| Channels | 4 |
| Sample rate | 5 GS/s |
| Waveform capture rate | 4500000 wfm/s |
| Vertical resolution | 12 bits (18 bits in HD mode) |
| Vertical scale | 0.5 mV/div - 1 V/div |
| Horizontal scale | 200 ps/div - 10000 s/div |
| Interfaces | USB Host, USB Device, LAN, HDMI |
| Decoding options | IIC, SPI, UART/RS232, CAN, LIN |
| Display | 15.6" TFT LCD (1920x1080, Touch-screen) |
| Dimensions | 445 × 314 × 153 |
| Weight | 9 kg |
Options
There are a lot of options available for this product. Please, see the datasheet for a list of all optionsAccessories
The MXO54 series comes by default with:
- 700 MHz passive probe
- Power cord
Downloads
| Rohde & Schwartz MXO5 user manual |  (23.76 MB) | Download |
| Rohde & Schwartz MXO5 datasheet | (19.21 MB) | Download |
| Rohde & Schwartz MXO5 specifications | (1.08 MB) | Download |
