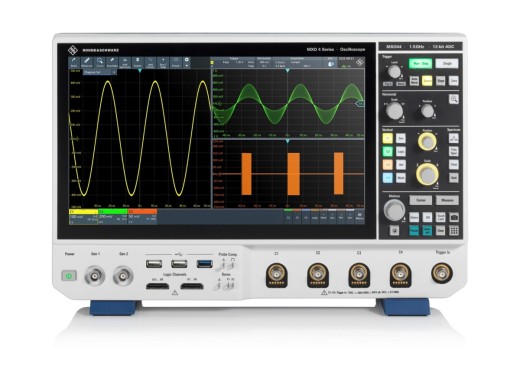

Rohde & Schwarz MXO44-ULTM bundle

49470 €49,470.00 Excl. VAT

This product is retired

Product number: ELE007849

Lowest price guaranteed

Details

The MXO44 series of oscilloscopes features an extremely high waveform capture rate of 4.5 million waveforms/s. This combined with the 12-bit ADC (18-bit in HD mode) ensures that many small infrequent events can be observed better than with many other oscilloscopes. Furthermore, this series features a big 800 M points memory depth which allows recording for long periods of time. In addition to this, these oscilloscopes also feature an FFT function with a spectrum acquisition rate of 45000 FFT/s and a highly sensitive trigger function with low trigger jitter. The MXO44 series features a 13.3" full HD capacitive touchscreen display with an intuitive user interface that contains for example a function search menu and remote control access over LAN. Furthermore, the MXO44 series features a VESA mount with which the oscilloscopes can be mounted.

MXO4-ULTM

This bundle features the following:

MXO44-242 oscilloscope
MXO4-B2415 1.5 GHz bandwidth option
MXO4-K510 Low speed serial buses
MXO4-K520 Automotive protocols
MXO4-K560 Automotive ethernet bus
MXO4-K31 Power analysis
MXO4-K36 Frequency response analysis
MXO4-K560 Automotive ethernet bus
MXO4-K550 MIPI low speed protocols
MXO4-K530 Aerospace protocols
MXO4-B6 ARB Generator
MXO4-B1Mixed-Signal-Option
MXO4-B108 Memory option 800 Mpts

Bundle overview

Model	MXO44-BASC	MXO44-PRO	MXO44-ULTM
Bandwidth	200 MHz	500 MHz	1.5 GHz
Rise time	1.75 ns	700 ps	234 ps
Memory depth	400 Mpts	400 Mpts	800 Mpts
Extra features	waveform generator	waveform generator, frequency response analyser, power analysis package, trigger & decoding	waveform generator, frequency response analyser, power analysis package, trigger & decoding, additional memory, logic probes with MSO option.
Price	9710 €9,710.00 Excl. VAT	23500 €23,500.00 Excl. VAT	49470 €49,470.00 Excl. VAT

Specifications

Channels	4
Sample rate	5 GS/s (on 2 channels, 2.5 GS/s on 4 channels)
Waveform capture rate	4500000 wfm/s
Vertical resolution	12 bits (18 bits in HD mode)
Vertical scale	0.5 mV/div - 1 V/div
Horizontal scale	200 ps/div - 10000 s/div
Interfaces	USB Host, USB Device, LAN, HDMI
Display	13.3" TFT LCD (1920x1080, Touch-screen)
Dimensions	414 × 279 × 162
Weight	6 kg
