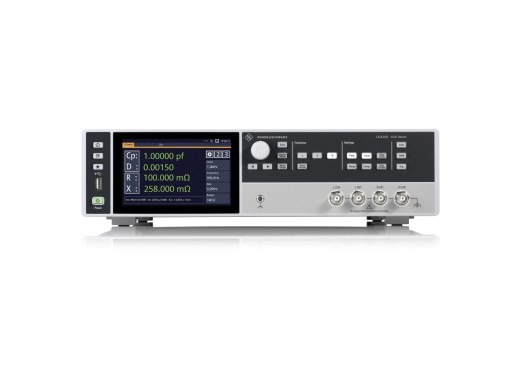

Rohde & Schwarz LCX200COM

This R&S LCX200COM is a bundle that includes the following options:

• LCX200 LCR Meter Advanced
• LCX-K106 Advanced Analysis Option
• LCX-K107 Binning Option
• LCX-K108 Extended Bias Option
• LCX-K210 Frequency Upgrade 10 MHZ

The LCR meter performs measurements with an accuracy of ±0.05 % for impedance measurements and an accuracy of ±0.03°for phase measurements. It is also extremely fast because a fast logging function records all measured values up to 10 times per second. The LCR meter has an upper-frequency limit of 500 kHz and can be extended to 1 MHz or 10 MHz using software options. Next to AC measurements, this LCR meter covers DC measurements as well. Moreover, the LCR meter has an internal DC bias voltage of up to 10 V and an external DC bias voltage of up to 40 V. By using the advanced analysis function of the meter, dynamic impedance measurements can be performed which are determined for a series of frequency values or other parameters. Furthermore, the measurements can be controlled and triggered externally via digital I/O ports. The LCR meter comes with a large capacitive touchscreen for easy operation of the instruments and display of the measured results. Lastly, the LCX200 is very suitable for system applications because of its remote controllability and the possibility of rack installation.

Specifications

Test signal frequency	DC, 4 Hz to 10 MHz (option)
Test signal voltage	< 1 MHz: 100 mV to 10 V > 1 MHz: 100 mV to 2 V
DC bias voltage (internal)	0 V to + 10 V
DC bias current (internal)	0 mA to 200 mA
External DC bias voltage, input	0 V to +40 V
Source impedance	100 Ω to 10 Ω
Measurement range	100 mΩ to 100 MΩ
Basic accuracy for impedance measurements	0.05 %
Interface	USB host/device, LAN, trigger in, digital I/O
Dimensions	162 x 153 x 115 mm
Weight	2.6 kg

List of measurement functions

Cp	Capacitance value measured with parallel-equivalent circuit model
Cs	Capacitance value measured with series-equivalent circuit model
Lp	Inductance value measured with parallel-equivalent circuit model
Ls	Inductance value measured with series-equivalent circuit model
D	Dissipation factor
Q	Quality factor (inverse of D)
G	Equivalent parallel conductance measured with parallel-equivalent circuit model
Rp	Equivalent parallel resistance measured with parallel-equivalent circuit model
Rs	Equivalent series resistance measured with series-equivalent circuit model
Rdc	Direct current resistance
R	Resistance
X	Reactance
Z	Impedance
Y	Admittance
Θd*	Phase angle of impedance/admittance (degree)
Θr*	Phase angle of impedance/admittance (radian)
B	Susceptance
M*	Mutual inductance
N*	Turns ratio

Measurement types with * are only available in combination with the LCX-Z5 test fixture

Options

By means of the following options you can add additional features:

Product	Description
LCX-Z1	The Rohde & Schwarz LCX-Z1 allows radial and axial test leads to be connected to the Rohde & Schwarz LCX100 and LCX200.	Rohde & Schwarz LCX-Z1 590 €590.00 Excl. VAT Info Add to Cart
LCX-Z2	The Rohde & Schwarz LCX-Z2 uses kelvin clip test leads to connect non-standard sized components to the Rohde & Schwarz LCX100 and LCX200.	Rohde & Schwarz LCX-Z2 835 €835.00 Excl. VAT Info Add to Cart
LCX-Z4	The Rohde & Schwarz LCX-Z4 allows SMD components to be connected to the Rohde & Schwarz LCX100 and LCX200 via test tweezers.	Rohde & Schwarz LCX-Z4 860 €860.00 Excl. VAT Info Add to Cart
LCX-Z5	The Rohde & Schwarz LCX-Z5 test fixture allows the user to measure the mutual inductance, turns ratio and angle of a transformer, transmitter or transducer.	Rohde & Schwarz LCX-Z5 895 €895.00 Excl. VAT Info Add to Cart
