Rohde & Schwarz HMP4040COM promotion

3100 €3,100.00 Excl. VAT
Loading stock info
  •
Product number: ELE005420

Be the first to review this product

Lowest price guaranteed

Details

The Rohde & Schwarz HMP4040COM consists of:

  • HMP4040 4 channel power supply
  • HO732 dual interface (USB/Ethernet)

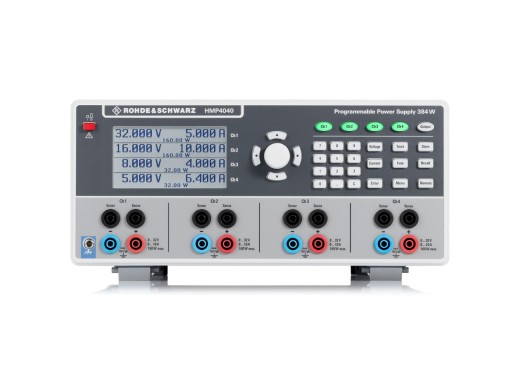

The Rohde & Schwarz HMP4040 power supply belongs to the HMP series and has 4 channels and a power of 384W. All four channels have an output voltage of 0-32V and an output current of 0-10A.

The Rohde & Schwarz HMP series are programmable DC power supplies. All channels can be connected in parallel as well as in series so that a higher current or voltage can be achieved. The power supplies have a high accuracy due to the low resolution and because of the built-in linear regulators, a low ripple is present. The HMP series power supplies also have voltage and current protection (OVP and OCP). The voltage protection can be set separately for each channel. The power supplies have EasyArb, with which the time/current flow or time/voltage curve can be programmed.

All connectors on the front side can also be found on the backside. This is useful when the power supply is mounted in a rack but it also offers advantages in other applications.

Model overview

The main differences between the models of the Rohde & Schwarz HMP series are shown in the table below.

Model HMP2020 HMP2030 HMP4030 HMP4040
Channels 2 3 3 4
Power 188 W 188 W 384 W 384 W
Output current 1x 0 - 10 A
1x 0 - 5 A		 3x 0 - 5 A 3x 0 - 10 A 4x 0 - 10 A
LCD display 240 x 64 pixel 240 x 64 pixel 240 x 128 pixel 240 x 128 pixel
Dimensions 285 x 75 x 365 mm 285 x 75 x 365 mm 285 x 125 x 365 mm 285 x 125 x 365 mm
Weight 8.5 kg 8.5 kg 10 kg 10 kg
Price 1810 €1,810.00 Excl. VAT 2070 €2,070.00 Excl. VAT 2490 €2,490.00 Excl. VAT 2950 €2,950.00 Excl. VAT

Specifications

Output voltage 0 - 32 V
Resolution voltage 1 mV
Resolution current 0.2 mA when < 1A and 1 mA when ≥ 1 A
Ripple < 1.5 mVrms and < 1 mArms
Connectivity Dual interface USB/RS-232 (R&S HO720)

Accessories

The HMP4040 power supply comes with the following accessories:

  • Power cord

Downloads

HMP2/4-000 series user manual
pdf (4.63 MB)Download
HMP4000 series datasheet
pdf (9.8 MB)Download
