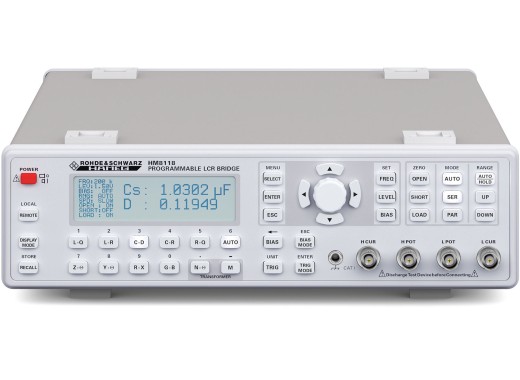

Rohde & Schwarz HM8118 LCR meter

The Rohde & Schwarz HM8118 series is a programmable LCR meter with high precision, a large selection of measuring functions and a wide measuring frequency range. The measuring voltage can be adjusted, and even increased externally via a connection, in order to be able to measure very extensively. Components can be measured up to femto Farad and nano Henry ranges.

The HM8118 can measure non-ideal component characteristics. For example, at the push of a button, the equivalent resistance series of a component can be calculated. Furthermore, properties such as impedance and admittance, phase angle, dissipation factor and quality factor can be calculated on the meter.

In addition to passive components, the meter can also optionally measure specific parameters of transformers. Not only on 50/60Hz but on the whole frequency range.

In terms of connectivity, the meter is equipped with a USB and RS-232 connector. Optionally a GPIB connector is available. Via these connectors the device can be operated remotely. The connectors are galvanically isolated.

Specifications

For more information you can download the handleiding en datasheet.

Software, firmware and drivers

The software, firmware and drivers of these meters can be found at the website of Rohde & Schwarz, on the right hand side.

Accessories

The devices in the Rohde & Schwarz HM8118 series are supplied with:

• Manual
• Power cord
• HZ184 kelvin test leads (see image)
• HZ188 smd-component test fixture (see image)
• CD with software

Options

There are some optional hardware extensions available for the HM8118. In the manual you can find out exactly what functionality each option consists of. Below is a brief overview. The options can be checked with the product, or ordered at a later date.

Downloads

R&S HM8118 manual

(5.34 MB)

Download
