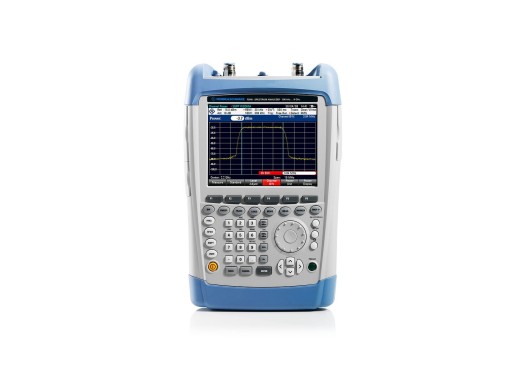

Rohde & Schwarz FSH20 handheld spectrum analyser
Details
The Rohde & Schwarz FSH20 is a handheld spectrum analyser. The FSH20 is simple to operate and has a large number of measurement functions. These features make this the perfect product for anyone who needs a spectrum analyser for outdoor work. Furthermore, this spectrum analyser is able to conduct signal analysis, interference detection, RF measurements, and test sequences. The device can perform test sequences automatically and is easy to set up. The frequency range of this spectrum analyser ranges from 9kHz up to 20GHz. Furthermore, the batteries last up to 4.5 hours. The typical noise experienced by this analyser is -163dBm/Hz, due to the preamplifier. Finally, the FSH20 can be connected to a PC via USB and LAN and data can be stored using an external USB stick.
Model overview
The series consists of several models, which mainly differ in the bandwidth.
| Model | FSH4 | FSH8 | FSH13 | FSH20 |
|---|---|---|---|---|
| Bandwidth | 9 kHz - 3.6 GHz | 9 kHz - 8 GHz | 9 kHz - 13.6 GHz | 9 kHz - 20 GHz |
| Price |
Specifications
| RBW | 1 Hz - 300 kHz |
| DANL | - 163 dBm/Hz @ 1 GHz |
| Amplitude accuracy | < 0.5 dB |
| Phase noise | < - 127 dB/ Hz |
| Tracking generator |
No
|
| Interfaces | USB host/device, LAN, RJ-45 |
| Display | 6.5" LCD (640 x 480) |
| Dimensions | 194 x 300 x 69 mm |
| Weight | 3 kg |
Software, firmware and drivers
The software, firmware and drivers of this spectrum analyser can be found at the manufacturer's website.
Accessories
The Rohde & Schwarz FSH20 handheld spectrum analyser is supplied including:
- Power cord
- USB cable for PC connection
- Lithium-ion battery pack
- LAN cable
Pros and cons
- Portable
Downloads
| R&S FSH Handheld Spectrum Analyzer - Specifications |  (1.59 MB) | Download |
| R&S FSH OperatingManual | (9.54 MB) | Download |
| R&S FSH ProductBrochure | (16.76 MB) | Download |
