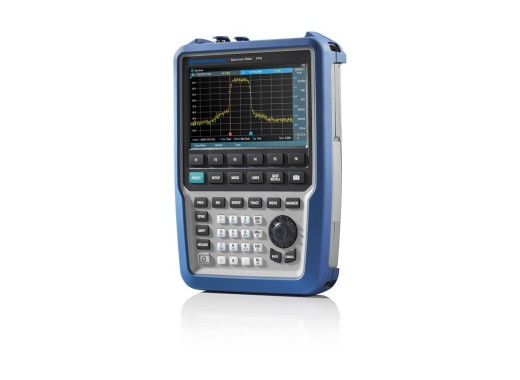

Rohde & Schwarz FPH-COM1 spectrum analyser
Details
The Rohde & Schwarz FPH-COM1 is a premium spectrum analyser with a frequency range of 5 kHz - 4 GHz. Its handheld size, large buttons and 9 hours of battery life make it the ideal analyser for both field and lab tasks.
The large screen features a non-reflective and backlit display that allows the analyzer to be used in dark and very bright spots. In addition, the screen of this analyser is a touch-screen display so that
the analyser can also be easily controlled as you would with a smartphone.
R&S Full Package FPH-COM1
The Full Package FPH-COM1 is delivered including:- FPH-B3&B4 Frequency upgrade to 4 GHz
- FPH-B22 Spectrum analyser pre-amplifier
- FPH-K15 Interference analysis function
- FPH-K16 Signal strength mapping function
- FPH-K7 Modulation analysis function
- FPH-K9 Power measurement function
- FPH-K19 Channel power measurement function
- FPH-K29 Pulse measurement + power sensor function
- FPH-K43 Receiver mode + channel scanner measurement function (EMI)
Specifications
| Display | 7" WVGA, 800 × 480 pixels |
| Frequency | 5 KHz - 4 |
| Resolution | 1 Hz |
| Noise level | Up to -165 dBm/Hz | .
| Third-order intercept (IP3) | +7 dBm |
| Maximum input voltage | 50V DC |
| Amplitude display |
Log: 1 dB - 150 dB, 10 divisions Linear: 0 - 100 %, 10 divisions |
| Connections | USB 2.0 type A, mini B plug 2.0, Lan (10/100BASE-T, RJ-45) |
| Battery life | Up to 9 hours |
| Weight | 2.5 kg |
| Dimensions | 202 x 294 x 76 mm |
Accessories
The Rohde & Schwarz FPH handheld spectrum analyser is supplied including:
- Power cord
- USB cable for PC connection
- Lithium-ion battery pack
- Side strap (holding strap)
Downloads
| Rodhe & Schwarz FPH series datasheet |  (2.07 MB) | Download |
| FPH brochure | (11.09 MB) | Download |
