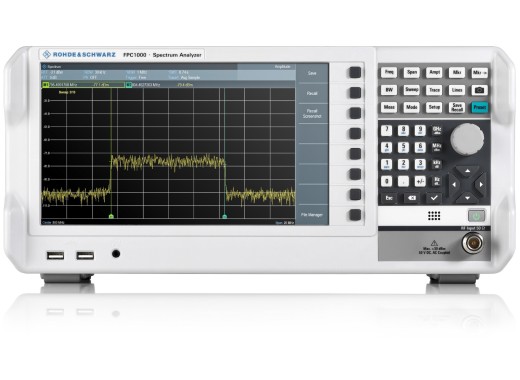

Rohde & Schwarz FPC-COM1 bundle
Details
The Rohde & Schwarz FPC-COM1 is a bundle that includes the FPC1000 spectrum analyser, the FPC-B22 preamplifier, an much more. This spectrum analyser with advanced measurement functions has a 3 GHz bandwidth and a large, high-quality WXGA 10.1" inch display. Moreover, the FPC1000 features an independent CW signal generator, and a built-in VSWR bridge. The spectrum analyser can be easily connected to a PC via USB and LAN connections. Of course, it is also possible to store measurement data using a USB stick.
The following products are included in the FPC-COM1 bundle:
- FPC-B2 Frequency upgrade 1GHz to 2GHz
- FPC-B3 Frequency upgrade 2GHz to 3GHz
- FPC-B22 Preamplifier
- FPC-K7 Modulation analysis
- FPC-K43 Receiver mode
- FPC-K55 Advanced measurements
Specifications
| Bandwidth | 2 MHz - 3 GHz |
| RBW | 1 Hz - 3 MHz |
| Noise level | Up to -158 dBm/Hz |
| Phase noise | < –92dBc (1Hz) (f=500 MHz, 30kHz offset) |
| Tracking generator |
No
|
| Interfaces | USB, LAN, Wi-Fi |
| Display | 10.1" WXGA (1366x768) |
| Dimensions | 396 x 185 x 156 mm |
| Weight | 3.0 kg |
Accessories
The Rohde & Schwarz FPC1000 spectrum analyser is supplied with:
- Power cord
- USB cable for PC connection
Downloads
(992.89 KB)
