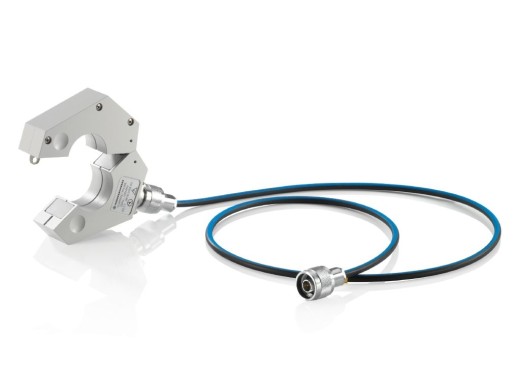

Rohde & Schwarz EZ-17 RF current probe (model 3)

This EZ-17 (model 3) current probe acts as a transformer with the current-carrying conductor as its primary winding. A voltage proportional to the primary current is measured at the current probe RF output. The current probe is used to inject sine-wave or pulse-shaped RF current into lines or cable harnesses for immunity measurements (bulk current injection).

Operates in the 1-245 MHz range.
