Rohde & Schwarz AMN6500 LISN
Details

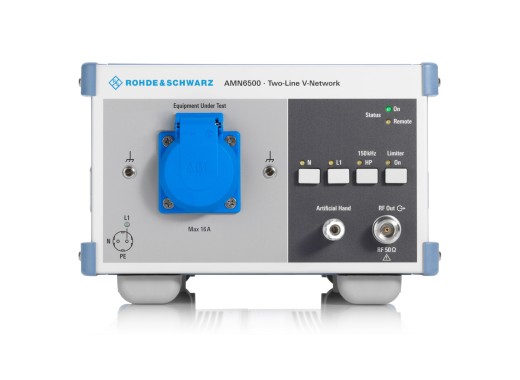

The Rohde & Schwarz AMN6500 is a two-line V-network LISN for conducted disturbance voltage measurements on single-phase equipment under test (EUT). It provides a standardised (50µH + 5Ω) || 50Ω impedance across 9kHz to 30MHz, making it suitable for measurements in line with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461 standards.
Compared to simpler LISNs such as the Tekbox TBL5016-2C, the AMN6500 offers a more complete feature set: a built-in 10dB attenuator pad (ensuring standard-compliant impedance regardless of receiver input attenuation), a switchable 150kHz high-pass filter (to prevent receiver overdriving from low-frequency spectra), an artificial hand connector for simulating the effect of a human hand on handheld EUTs, and a switchable pulse limiter protecting the receiver input. TTL-level remote control inputs allow full integration into automated test systems and are directly compatible with Rohde & Schwarz test receivers. Optocouplers prevent external interference from entering through the control port.
Specifications
| Frequency range | 9 kHz - 30 MHz |
| Simulated impedance | (50 µH + 5 Ω) || 50 Ω |
| Max. AC supply voltage | 240 VAC +10% |
| AC supply frequency | 50 Hz to 60 Hz ±5% |
| Max. DC voltage | 28 V DC |
| Highpass filter | 150 kHz (switch-selected) |
| Voltage division factor | 10 dB (built-in attenuator pad) |
| Pulse limiter threshold | 140 dB(µV) (switchable) |
| RF output connector | N female, 50 Ω |
| Remote control | TTL, 25-contact D-Sub female |
| Standards | CISPR, EN, VDE, ANSI, FCC Part 15, MIL-STD-461 |
| Dimensions | 219 x 147 x 350 mm |
| Weight | 5.5 kg |
Accessories
The R&S AMN6500 comes by default with:
- Plug-in power supply
Pros and cons
- Artificial hand connector included
- Switchable 150kHz high-pass filter included
- Protective earth mandatory due to high leakage current
- No on/off switch
Downloads
| R&S AMN6500 user manual |  (1.7 MB) | Download |
