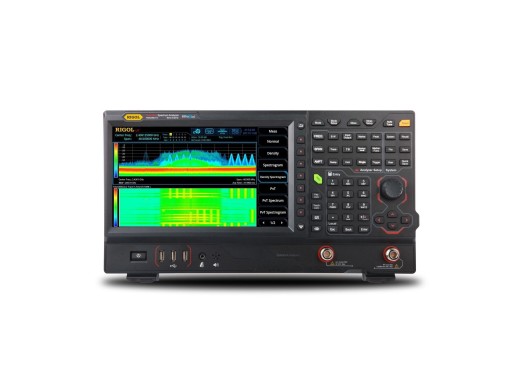

Rigol RSA5065-TG spectrum analyser
Details
The Rigol RSA5065-TG is a beefy real-time spectrum analyser and it is part of the Rigol RSA5000 series. The RSA5065-TG also includes a tracking generator.
It has a frequency range of 9kHz up to 6.5GHz, which is useful for a wide variety of applications such as complex wireless technologies, RF technologies, and data buses such as SPI and I2C. Analyse signals as small as 7.45µs at a minimum of 1Hz resolution bandwidth.
A feature which make this analyser stand out are its 10.1" multi-touchscreen for various touch gestures, alongside the traditional button operation. You can also hook up an external HDMI monitor or even make use of its convenient Web Control function to access and interface with the device.
Model overview
The models in this series differ mainly in frequency range, VNA and tracking generator capability.| Model | Bandwidth | VNA | Tracking generator | Price |
| RSA5032 | 9 kHz to 3.2 GHz | No | No | |
| RSA5032-TG | 9 kHz to 3.2 GHz | No | Yes | |
| RSA5032N | 9 kHz to 3.2 GHz | Yes | Yes | |
| RSA5065 | 9 kHz to 6.5 GHz | No | No | |
| RSA5065-TG | 9 kHz to 6.5 GHz | No | Yes | |
| RSA5065N | 9 kHz to 6.5 GHz | Yes | Yes |
Specifications
| Real-time analyse bandwidth | 25 MHz |
| RBW | 1 Hz - 10 MHz |
| DANL | -136 dBm |
| Frequency resolution | 1 Hz |
| Sweep speed | 1 ms (full span) |
| Trigger type | Frequency mask, IF power level, external |
| Phase noise | <-108 dBc/Hz |
| Interfaces | USB to external host, USB, LAN, GPIB |
| Display | 10.1” touchscreen (1024x600) |
| Dimensions | 410 x 224 x 135 mm |
| Weight | 4.95 kg |
Options
| High stability clock (hardware) | OCXO-CO8 | |
| Real-time analysis 40 MHz bandwidth upgrade (software) | RSA5000-B40 | |
| Advanced measurement kit (software) | RSA5000-AMK | |
| EMI measurement (software) | RSA5000-EMI | |
| Pre-amplifier (software) | RSA5000-PA | |
| Vector signal analysis (software) | RSA5000-VSA | |
| EMI pre-compliance test (software) | S1210 |
Accessories
The RSA5065-TG comes with:
- Power cord
Pros and cons
- High RBW
- Integrated tracking generator
- Very rapid full span sweep
Downloads
| Datasheet RSA5000 series |  (5.87 MB) | Download |
| RSA5000 series user manual | (4.35 MB) | Download |
