Product number: ELE002675

Be the first to review this product

Details

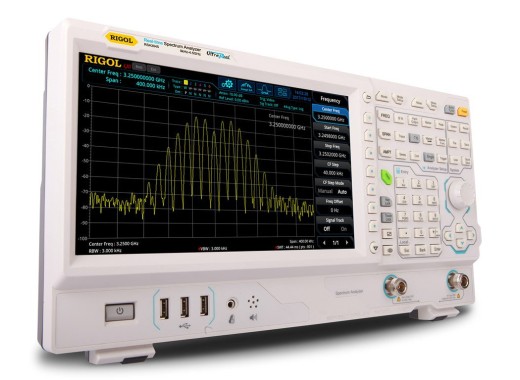

The Rigol RSA3045-TG is a real-time spectrum analyser in the RSA3000 series. A real-time spectrum analyser uses the Fast Fourier Transform to convert the signal from the time domain to the frequency domain. This ensures that short and fast signals are better captured. In addition to the real-time mode, these analysers also have the 'sweep' mode, which allows you to in 1 ms a complete analysis of the signal can be done.
Due to the low Displayed Average Noise Level of these analysers, low-power signals such as harmonics and sources of interference are well displayed and easy to troubleshoot. It is also easy, due to the low minimum resolution bandwidth of 1 Hz, to keep signals with frequencies close to each other apart. Furthermore, there are 7 real-time visualization modes and the analysers have powerful trigger capabilities. The analysers in this series feature a large 10.1" multi-touch screen for easy operation. In addition it is also possible to connect a keyboard, mouse, monitor or PC and use it to operate the analysers.
The models with -TG in the name have a Tracking Generator which allows for example cables, antennas, filters and active components can be tested.

Models

The models within the RSA3000 series mainly differ from each other in frequency range. The models with -TG in the name are supplied with a built-in tracking generator. The specifications of the tracking generator can be found under the heading 'Specifications'. tracking generator. Are you looking for a model with VNA? Then take a look at the RSA3045N.

RSA303030
ModelRSA3030RSA3030-TGRSA3045RSA3045-TG
Frequency range 9 kHz - 3 GHz 9 kHz - 3 GHz 9 kHz - 4.5 GHz 9 kHz - 4.5 GHz
Tracking generator No. Yes No. Yes
Price 3339 €3,339.00 Excl. VAT 4224 €4,224.00 Excl. VAT 4322 €4,322.00 Excl. VAT 5404 €5,404.00 Excl. VAT

Specifications

Resolution1 Hz
Internal reference frequency10 MHz
Maximum input voltage50 V
Real-time analysis bandwidth10 MHz (Option 40 MHz)
Maximum input power25 mm
DANL ≤-161 dBm
Phase noise≤-102 dBc/Hz
Amplitude display Log: 1 - 200 dB
Linear: 0 - reference
Min. RBW 1 Hz
Third order intercept+15 dBm
Interfaces USB host, USB device, LAN, HDMI
Display10.1" touchscreen (1024x600)
Weight4.65 kg
Dimensions 410 x 224 x 135 mm

Tracking generator specifications

ModelRSA3030-TGRSA3045-TG
Frequency range 100 kHz - 3 GHz 100 kHz - 4.5 GHz
Output level range -40 - 0 dBm -40 - 0 dBm
Output level resolution 1 dB 1 dB

For more information and specifications you can find the datasheet of the RSA3000 series at the bottom of this page.

Options

RSA-EMI measurement application This EMI software package for the RSA3000 and RSA5000 series is a complete EMI pre-compliance solution with preset scans, peaks, limits and multiple CISPR detectors.

RSA-EMI

RSA3000/-5000 EMI software package
895 €895.00 Excl. VAT
Info
RSA-PA preamplifier This option activates the front-end preamplifier of the RSA3000 series.

RSA-PA

RSA3000 pre-amplifier option
225 €225.00 Excl. VAT
Info

Accessories

The spectrum analysers of the RSA3000 series are standard delivered including:
  • User manual
  • Power cord
  • USB cable
  • Calibration certificate
