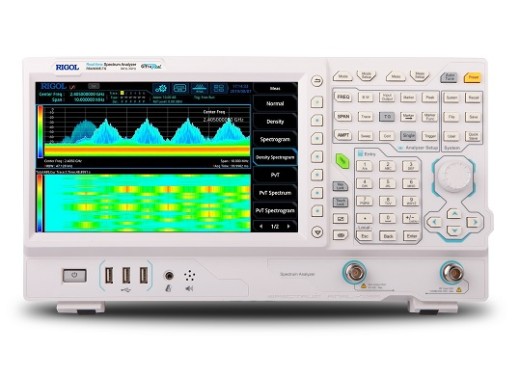

Rigol RSA3030E spectrum analyser
Details
The Rigol RSA3030E is a real-time spectrum analyzer in the RSA3000E series.
A real-time spectrum analyzer uses the Fast
Fourier Transform to convert the signal from the time domain to the frequency domain. This ensures that
short and fast signals can be captured better. This mode guarantees not to miss any signal with a duration longer than 7.45 µs. Besides the real-time mode these analyzers also have the 'sweep' mode with which
In addition to the real-time mode, these analyzers also have a sweep mode with which a complete analysis of the signal can be done in 1 ms.
Low-power signals such as harmonics and interference sources are well displayed and easy to troubleshoot due to the low Displayed Average Noise Level of these analyzers.
It is also easy, due to the low minimum resolution bandwidth of 1 Hz,
to separate signals with frequencies close to each other. Furthermore, there are 7 real-time visualization modes
and the analyzers have powerful trigger capabilities.
The analyzers in this series feature a large 10.1" multi-touch screen for easy operation. In addition
it is also possible to connect a keyboard, mouse, monitor or PC to control the analyzers.
The difference between the RSA3000E and RSA3000 series is that the RSA3000E series does not have an upgradable RBW, while the RSA3000 series does.
Models
The models within the RSA3000E series differ mainly in frequency range. The models with -TG in the name come with a built-in tracking generator. The specifications for the tracking generator can be found under the heading tracking generator'.
| Model | RSA3015E | RSA3015E-TG | RSA3030E | RSA3030E-TG |
|---|---|---|---|---|
| Frequency range | 9 kHz - 1.5 GHz | 9 kHz - 1.5 GHz | 9 kHz - 3 GHz | 9 kHz - 3 GHz |
| Tracking generator | No | Yes | No | Yes |
| Price |
Specifications
| Resolution | 1 Hz |
| Internal reference frequency | 10 MHz |
| Maximum input voltage | 50 V |
| Real-time analysis bandwidth | 10 MHz |
| Maximum input power | 25 mm |
| DANL | ≤-161 dBm |
| Phase Noise | ≤-102 dBc/Hz |
| Amplitude response | Log: 1 - 200 dB Linear: 0 - reference |
| Min. RBW | 1 Hz |
| Third order intercept | +15 dBm |
| Interfaces | USB host, USB device, LAN, HDMI |
| Display | 10.1" touch-screen (1024x600) |
| Weight | 4.65 kg |
| Dimensions | 410 x 224 x 135 mm |
Tracking generator specifications
| Model | RSA3015E-TG | RSA3030E-TG |
|---|---|---|
| Frequency range | 100 kHz - 1.5 GHz | 100 kHz - 3 GHz |
| Output level range | -40 - 0 dBm | -40 - 0 dBm |
| Output level resolution | 1 dB | 1 dB |
For more information and specifications, please find the RSA3000E series datasheet at the bottom of this page.
Options
| RSA-EMI measurement application | This EMI software package for the RSA3000E is a complete EMI pre-compliance solution with preset scans, peak tests, limits and multiple CISPR detectors. | |
| RSA-PA preamplifier | This option activates the front-end preamplifier of the RSA3000E series. | |
| Near Field Probe kit | This Near Field Probe kit (NFP) from Rigol is designed for EMC diagnosis in the frequency range from 30 MHz to 3 GHz. Suitable for all Rigol spectrum analyzers. | |
| RSA-EMC option | Rigol RSA3000E EMC option provides, among other things, Quasi-Peak detection and EMI filter. | |
| RSA-AMK option | Rigol RSA3000E AMK option that dramatically expands the measurement capabilities of the Rigol RSA3000E spectrum analyzers. | |
| RSA-ASK/FSK option | Rigol RSA3000E ASK/FSK option provides ASK/FSK Demodulatird for the Rigol RSA3000E spectrum analyzers. |
