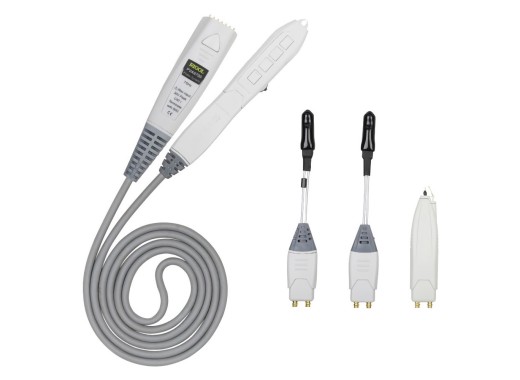

Rigol PVA8700 probe

The Rigol PVA8700 is part of the PVA8000 series of Rigol probes. This probe can be used to measure both differential and single-ended signals. It's rated up to a bandwidth of 7 GHz. The PVA8700 probe supports four interchangeable probe heads to cater to a variety of different use cases as well as allow you to replace any damaged tip extending the service life of the probe. The probe tip spacing can be precisely adjusted by a roller on the probe to different test point spacing greatly improving the usability of the probe. The probe also has a memory function saving the spacing between the probe tips allowing you to restore a previously saved position at the press of a button.

The PVA8700 is compatible with the auto-identification port of Rigol DS70000 series oscilloscopes and can be recognised and configured automatically.

The PVA8700 has a wide range of accessories and options, permitting the probe to be used in different tests and measurements. A list of included accessories and other information can be found in the manual.

Specifications

Downloads

PVA8000_UserGuide_EN

(1.35 MB)

Download
