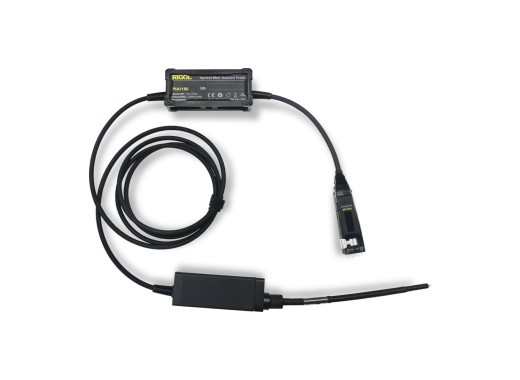

Rigol PIA1100 isolated probe
Details
The Rigol PIA1100 is an isolated probe from Rigol that can measure small and large voltages, with a bandwidth of 1 GHz and a common mode up to 85kVpk. The probes are compatible with a select range of Rigol oscilloscopes, such as the MSO8000, DHO4000 and MHO/DHO5000 series. If you are looking for a universily applicable probe, consider the micsig SigOFIT probes.
With this probe it becomes very easy to measure a gate signal at a high-side FET or IGBT at 600V or even at 1200V, which previously was almost impossible. This probe is indispensable for the development of circuits with SiC & GaN technology, as it suppresses the oscillation caused by high-frequency common-mode noise without the use of redundant components. Furthermore, the PIA1100 has a very low input impedance of <1pF, a very high common mode rejection ratio up to 180dB and a very accurate DC gain of 1%.
There are multiple attenuator tips available to test differential mode signals with attenuation from ±20x-±5000x. The compatible options are listed below.
Model overview
| Model | PIA1020 | PIA1050 | PIA1100 |
|---|---|---|---|
| Bandwidth | 200 MHz | 500 MHz | 1 GHz |
| Rise Time | ≤1.75 ns | ≤700 ps | ≤450 ps |
| CMRR | DC: 180 dB 200 MHz: 122 dB |
DC: 180 dB 500 MHz: 114 dB |
DC: 180 dB 1 GHz: 108 dB |
| Propagation Delay | 18.5 ns | 17.2 ns | 17.2 ns |
| Output Voltage | ±1.25 V | ±500 mV | ±500 mV |
| Noise | ≤2 mVrms @ 0 dB ≤400 μVrms @ 20 dB |
≤2.4 mVrms @ 0 dB ≤420 μVrms@ 2 0 dB |
≤2.4 mVrms @ 0 dB ≤420 μVrms @ 20 dB |
| Included attenuator tip | 20x | 50x + 2000x | 50x + 2000x |
| Price |
Specifications
| DC Gain Accuracy | 1% |
| Common Mode Voltage | 85 kVpk |
| cable length | 2 m |
| weight | 2.5 kg |
Attenuation
| Attenuator tip | Interface | Attenuation | Differential voltage range | Input impedance | Price |
| TIP-MMCX-20X-1 | MMCX | 20X | ± 20 V | 4.47 MΩ \ 4 pF | |
| TIP-MMCX-50X-1 | MMCX | 50X | ± 50 V | 4.19 MΩ \ 2 pF | |
| TIP-MMCX-1000X-1 | MCX | 1000X | ± 1000 V | 20.94 MΩ \ 1 pF | |
| TIP-MMCX-2000X-1 | MCX | 2000X | ± 2000 V | 20.52 MΩ \ 1 pF | |
| TIP-MMCX-5000X-1 | MCX | 5000X | ± 5000 V | 40.92 MΩ \ 1 pF |
Accessories
The PIA1100 comes by default with:
- 1 × TIP-MMCX-50X-1 Attenuating tip
- 1 × TIP-MCX-2000X-1 Attenuating tip
- 5 × MCX adapters (2.54mm spacing)
- 5 × MCX adapters (5.08mm spacing)
- 1 × MMCX coaxial cable
- 1 × MCX coaxial cable
- 1 × Carrying case
- 1 × Probe mount
Pros and cons
- Automatic communication with oscilloscope
- Only for selected oscilloscopes
Downloads
| PIA1000 user manual |  (604.88 KB) | Download |
