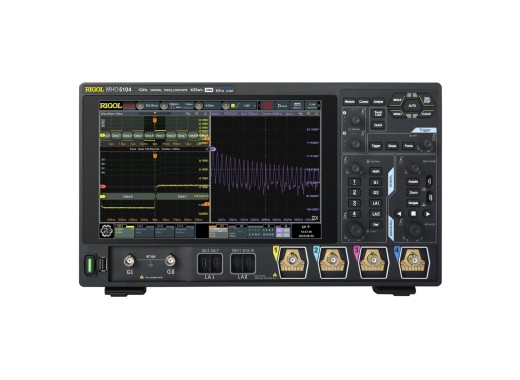

Rigol MHO5104 oscilloscope
Details
The Rigol MHO5104 is a 4-channel oscilloscope in the MHO5000 series with a bandwidth of 1GHz. The MHO5104 has a 12-bit resolution to reduce quantization uncertainty and in turn, improve signal fidelity and analysis capabilities. This can be increased to 16-bit in high-resolution mode, enabling even higher detection of variations in incoming signals. This oscilloscope offers extensive measurement and analysis possibilities, such as power analysis, histogram, digital signal analysis, and protocol decodings. It also has arbitrary function generator and a bode plot function. Up to 500,000 frames with data can be recorded and played for extensive analysis. With the fast recording mode it is possible capture up to 1,000,000 wfms/s. In addition, the oscilloscope has a very low noise floor, making measurements on very small signals possible and resulting in cleaner signals. The MHO5104 has multiple interface options include USB 3.0 ports (1x in the front and 1x in the back), LAN, HDMI, Pass/Fail, Trigger Out and Bluetooth. LAN web control is also supported which allows for the operation interface to be displayed in a web browser. The oscilloscope features a large 10.1" touchscreen, 8GB of internal memory. Furthermore, the oscilloscope supports an optional battery pack, enabling portable use and charging anywhere in the field.
Model overview
The models in this series differ mainly in bandwidth, analog channels, and rise time.| Model | Bandwidth | Channels | Rise time | Price |
| MHO5054 | 500 MHz | 4 analog | ≤ 750 ps | |
| DHO5054 | 500 MHz | 4 analog | ≤ 750 ps | |
| MHO5104 | 1 GHz | 4 analog | ≤ 350 ps | |
| DHO5104 | 1 GHz | 4 analog | ≤ 350 ps | |
| MHO5056 | 500 MHz | 6 analog | ≤ 750 ps | |
| MHO5106 | 1 GHz | 6 analog | ≤ 350 ps | |
| DHO5058 | 500 MHz | 8 analog | ≤ 750 ps | |
| DHO5108 | 1 GHz | 8 analog | ≤ 350 ps |
Specifications
| Memory depth | 500 Mpts (single channel) |
| Sample rate | 4 GSa/s (single channel) |
| Waveform capture rate | 200,000 wfm/s (vector mode) 1,000,000 wfm/s (Record mode) |
| Vertical resolution | 12 bits 16 bits (high resolution mode) |
| Vertical scale | 100 μV/div - 10 V/div |
| Horizontal scale | 500 ps/div - 500 s/div |
| Interfaces | LAN, HDMI, USB Host/Device |
| Decoding options | Parallel, RS232/UART, I2C, and SPI |
| Display | 10.1" LCD touchscreen (1280*800) |
| Dimensions | 335 x 235 x 154 mm |
| Weight | 5.3 kg |
Options
| Rigol BatHolder138 battery pack | BatHolder138 | |
| Rigol MHO5004-BND software option bundle | MHO5004-BND | |
| Rigol MHO5000-AWG function generator software option | MHO5000-AWG | |
| Rigol PLA3204 logic analyser probe option | PLA3204 | |
| Rigol MHO5000-AUTOA software option | MHO5000-AUTOA | |
| Rigol MHO5000-SENTA software option | MHO5000-SENTA | |
| Rigol MHO5000-PWRA software option | MHO5000-PWRA | |
| Rigol MHO5000-AEROA software option | MHO5000-AEROA | |
| Rigol MHO5000-AUDIOA software option | MHO5000-AUDIOA | |
| Rigol MHO5000-FLEXA software option | MHO5000-FLEXA |
Accessories
The following accessories are included with this oscilloscope:
- Power cord
- USB cable
- 4x passive RP3500A probes (500 MHz)
Pros and cons
- 12 bit vertical resolution
- Up to 4GSa/s real-time sampling rate
- Compact design
- Supports battery pack
- Supports WiFi & Bluetooth
Downloads
| MHO/DHO5000 series - User guide |  (31.81 MB) | Download |
| MHO/DHO5000 series - Datasheet | (19.35 MB) | Download |
