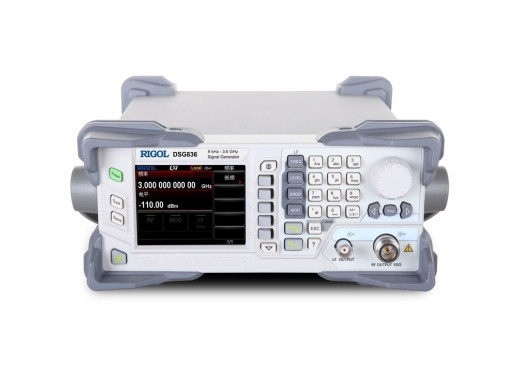

Rigol DSG836A RF signal generator
Promotion! This product is temporarily reduced in price until December 31st 2026!
Details
The Rigol DSG836A RF signal generator is the latest addition to the successful DSG800 series from Rigol. The DSG836A has a bandwidth up to 3.6 GHz and has a maximum output power of +20dBm. The Rigol DSG836A comes with a frequency resolution of up to 0.01 Hz and an amplitude precision of less than 05 dB.
RF signal generators offer the possibility to modulate AM/FM/ØM, but also pulse modulations (optional). The DSG836A features USB-Host, USB Device and LAN interfaces, in addition to the usual analogue output. This makes it possible to control and program the RF signal generator remotely.
Model overview
The models in this series differ mainly in bandwidth and IQ modulation capability.| Model | Bandwidth | IQ modulation | Price |
| DSG815 | 9 kHz to 1.5 GHz | No | |
| DSG821 | 9 kHz to 2.1 GHz | No | |
| DSG821A | 9 kHz to 2.1 GHz | Yes | |
| DSG830 | 9 kHz to 3 GHz | No | |
| DSG836 | 9 kHz to 3.6 GHz | No | |
| DSG836A | 9 kHz to 3.6 GHz | Yes |
Specifications
| Frequency precision | 0.01 Hz |
| Amplitude precision | ≤0.5 dB (typical) |
| Output amplitude range | -110dBm up to +13dBm (+20dBm unleveled) |
| Phase noise | <-112 dBc/Hz (type) |
| Connectivity | USB Host, USB Device, LAN |
| Display | 3.5" TFT LCD (320 x 240) |
| Dimensions | 261.5 x 112 x 318.4 mm |
| Weight | 4.2 kg |
Accessories
The Rigol DSG836A is supplied including:
- Power cord
Downloads
| Rigol DSG800 datasheet |  (2.6 MB) | Download |
| DSG800 user manual | (1.64 MB) | Download |
