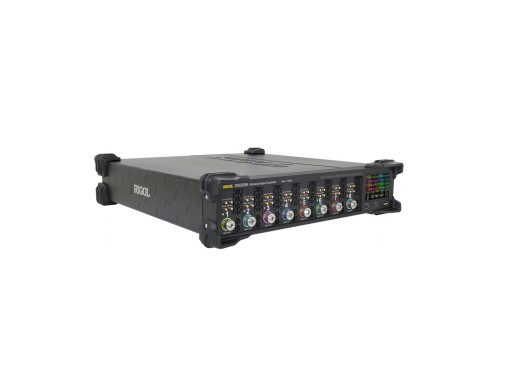

The Rigol DSG5208 is a part of the high-end Rigol DSG5000 series of microwave signal generators. This signal generator can handle some of the most complex test scenarios such as superconducting quantum computation, radar signal generation, MIMO, and EMS. The instrument has 8 high-frequency channels ranging from 9kHz to 20GHz with a resolution of 0.01Hz. Each channel operates independently and can be controlled separately. The generator features AM, FM, PM, pulse modulation, frequency sweep, and level sweep functions. This model is equipped with a 3.5" touchscreen display, allowing you to operate and control the generator using touch-enabled gestures.
Model overview
The models in this series differ mainly in frequency range and channel count.
| Model
| Frequency
| Channels
| Price
|
| DSG5122
| 9 kHz - 12 GHz | 2 |
43690
€43,690.00
Excl. VAT
|
| DSG5202
| 9 kHz - 20 GHz | 2 |
73090
€73,090.00
Excl. VAT
|
| DSG5124
| 9 kHz - 12 GHz | 4 |
87690
€87,690.00
Excl. VAT
|
| DSG5204
| 9 kHz - 20 GHz | 4 |
131390
€131,390.00
Excl. VAT
|
| DSG5126
| 9 kHz - 12 GHz | 6 |
145890
€145,890.00
Excl. VAT
|
| DSG5206
| 9 kHz - 20 GHz | 6 |
175090
€175,090.00
Excl. VAT
|
| DSG5128
| 9 kHz - 12 GHz | 8 |
218790
€218,790.00
Excl. VAT
|
| DSG5208
| 9 kHz - 20 GHz | 8 |
291690
€291,690.00
Excl. VAT
|
Specifications
| Frequency resolution | 0.01 Hz |
| Output amplitude | +5 dBm to +10 dBm |
| Amplitude accuracy | < 0.5 dB |
| Phase noise (10 kHz offset) | < -102 dBc / Hz, < -105 dBc / Hz (typ.) @ 20 GHz
|
| Frequency sweep shape | Triangle, ramp |
| Frequency sweep mode | Single, continuous |
| Trigger source | Auto, key, external, bus (USB and LAN) |
| Output impedance | 50 Ω |
| Interfaces | USB host/device, LAN, HDMI, BNC female, SMA female |
| Display | 3.5" (480x320) TFT LCD |
| Dimensions | 459 x 112 x 511 mm |
| Weight | 14 kg |
