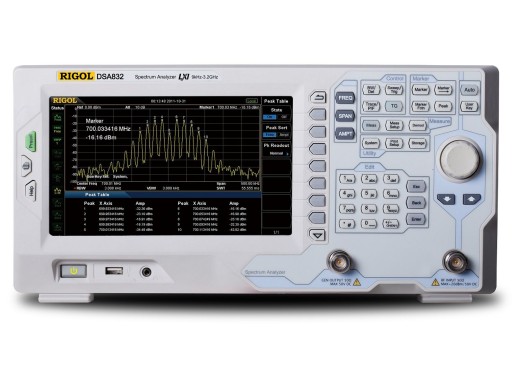

Rigol DSA832-TG spectrum analyser
Promotion! The Rigol DSA800 series spectrum analysers now include a free DSA800-EMI option! The option will be automatically added to your shopping cart. Promotion valid until December 31st 2026.
Details
The Rigol DSA832-TG is a 3.2 GHz spectrum analyser. With this spectrum analyser you can do measurements in the commonly used 2.4 GHz band!
This series of spectrum analysers offer great performance at an affordable price. The analysers are equipped with a widescreen display
and a user-friendly interface that makes it easy to use. These spectrum analysers are based on a fully digital intermediate frequency filtering which makes it easy to use,
ensures high resolution, high measuring speed and low noise.
The spectrum analysers can be connected to a computer via USB, LAN or optional GPIB connector, and then via Ultra Sigma, or
NI software can be easily communicated with the analyser. In addition, various information can be stored on a memory stick via
the built-in USB port. Furthermore, the analysers have a headphone jack to perform AM/FM demodulation and hear the audio exhaustion.
These spectrum analysers are well suited to perform EMI measurements, for example, before the device to be tested is sent to an inspection body.
goes. By saving a single trip to an inspection body, this device already earns itself back.
Model overview
| Model | Frequency range | Phase noise | DANL | Tracking generator | Price |
|---|---|---|---|---|---|
| DSA815-TG | 100 kHz - 1.5 GHz | -80 dBc/Hz | -155 dBm | Yes | |
| DSA832E-TG | 100 kHz - 3.2 GHz | -90 dBc/Hz | -158 dBm | Yes | |
| DSA832-TG | 100 kHz - 3.2 GHz | -98 dBc/Hz | -161 dBm | Yes | |
| DSA875-TG | 100 kHz - 7.5 GHz | -98 dBc/Hz | -161 dBm | Yes |
Specifications
| Display | 8" LCD, 800*480 pixels |
| Resolution | 1 Hz |
| Internal reference frequency | 10 MHz |
| Third-order intercept (IP3) | +10 dBm (-815) +7 dBm (-832E) +11 dBm (-832) +15 dBm (-875) |
| Maximum input voltage | 50V DC |
| Maximum input power | 30 dBm |
| Amplitude display |
Log: 1 dB - 200 dB Linear: 0 - Reference level |
| Connections | USB 2.0 type A, USB 2.0 type B, Lan |
| Frequency counter | Yes |
| Weight (without box) | 4.25 - 4.55 Kg |
| Dimensions | 361.6 x 178.8 x 128 mm (WxHxD) |
Options
| Rigol NFP-3 near field probe kit (hardware) | NFP-3 | |
| EMI filter & quasi-peak detector (software) | EMI-DSA800 | |
| Advanced measurement kit (software) | AMK-DSA800 | |
| VSWR measurement kit (software) | VSWR-DSA800 |
Accessories
The DSA800 series come bundled with:- Power cord
Downloads
| DSA800 datasheet |  (6.01 MB) | Download |
| EMI measurement with Rigol S1210 | (628.8 KB) | Download |
| DSA800 series programming guide | (3.36 MB) | Download |
| Rigol DSA800 series manual | (4.98 MB) | Download |
| DSA800 quick guide | (484.78 KB) | Download |
