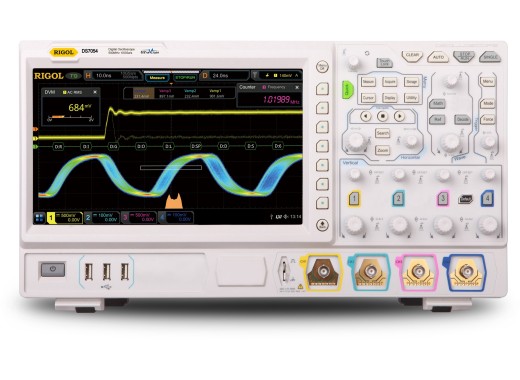

Rigol DS7034 oscilloscope
Details
The Rigol DS7034 is a 4-channel oscilloscope and the 350 MHz version in the DS7000 series from Rigol. The series offers a lot of value for money. The scopes have a large color screen, a deep memory and a high capture rate. They also have a 6-digit frequency counter and can perform an improved FFT compared to the Rigol DS4000 series. These scopes are also able to display 4 functions on the screen at the same time and it has many functions. In addition, this series can be connected to peripherals via various connectors.
Connections
The oscilloscopes can be connected to a computer with USB and LAN to operate the scope or to read data with the supplied software. Furthermore, the scope can be extensively programmed and LabView is supported. In addition, the scope can be connected to a monitor via VGA.
Measures
The scopes offer extensive measurement and analysis possibilities. A large number of frames with data can be stored for extensive analysis. In addition, the scopes have a very low noise, making measurements on very small signals possible. With various trigger options, many signals can be easily visualized. With the built-in intensity grading, various problems can be displayed in signals.
Model overview
| Model | Bandwidth | Channels | Horizontal scale | Price |
| DS7014 | 100 MHz | 4 analog | 5 ns/div - 1 ks/div | |
| DS7024 | 200 MHz | 4 analog | 2 ns/div - 1 ks/div | |
| DS7034 | 350 MHz | 4 analog | 1 ns/div - 1 ks/div | |
| DS7054 | 500 MHz | 4 analog | 500 ps/div - 1 ks/div | |
| MSOS7014 | 100 MHz | 4 analog / 16 digital | 5 ns/div - 1 ks/div | |
| MSOS7024 | 200 MHz | 4 analog / 16 digital | 2 ns/div - 1 ks/div | |
| MSOS7034 | 350 MHz | 4 analog / 16 digital | 1 ns/div - 1 ks/div | |
| MSOS7054 | 500 MHz | 4 analog / 16 digital | 500 ps/div - 1 ks/div |
Specifications
| Sample Rate | 1 channel: 10 GSa/s 2 channels: 5 GSa/s 4 channels: 2.5 GSa/s |
| Memory | Max. 140 Mpts (Option up to 250 and 500 Mpts) |
| Input impedance | 1 MΩ |
| Horizontal scale | 5 ns/div - 1000 s/div |
| Vertical resolution | 1 mV/div - 10 V/div |
| A/D converter | 8 bits resolution |
| Maximum voltage | 300 VRMS, CAT I |
| Waveform capture rate | Max. 600,000 wfm/s |
| Connections | 2.0 USB (2xHost/device), LAN, HDMI |
| Display | 10.1" TFT, 1024 x 600 pixels |
| Weight (without box) | ~4 Kg |
| Dimensions | 410 x 135 x 224 mm (LxWxH) |
Options
| 250 Mpts memory depth upgrade (software) | DS7000-2RL | |
| 500 Mpts memory depth upgrade (software) | DS7000-5RL | |
| 100MHz to 200MHz bandwidth upgrade (software) | DS7000-BW1T2 | |
| 100MHz to 350MHz bandwidth upgrade (software) | DS7000-BW1T3 | |
| 100MHz to 500MHz bandwidth upgrade (software) | DS7000-BW1T5 | |
| 200MHz to 350MHz bandwidth upgrade (software) | DS7000-BW2T3 | |
| 200MHz to 500MHz bandwidth upgrade (software) | DS7000-BW2T5 | |
| 350MHz to 500MHz bandwidth upgrade (software) | DS7000-BW3T5 | |
| Serial protocol analysis bundle (software) | DS7000-BND | |
| Computer serial triggering and analysis(RS232/UART) (software) | DS7000-COMP | |
| Embedded serial triggering and analysis (IIC/SPI) (software) | DS7000-EMBD | |
| Flexray triggering and analysis (software) | DS7000-FLEX | |
| Integrated power analysis (software) | DS7000-PWR | |
| Automotive serial triggering and analysis (software) | DS7000-AUTO | |
| Audio serial triggering and analysis (software) | DS7000-AUDIO | |
| MIL-STD-1553 serial triggering and analysis (software) | DS7000-AERO |
Accessories
All oscilloscopes of the DS7000 series are supplied including:
- Calibration certificate
- Front Cover (DS7000-FPC)
- Power cord
- Probes, 1 per channel, 500 MHz (RP3500A)
- USB cable
Downloads
(1.39 MB)
