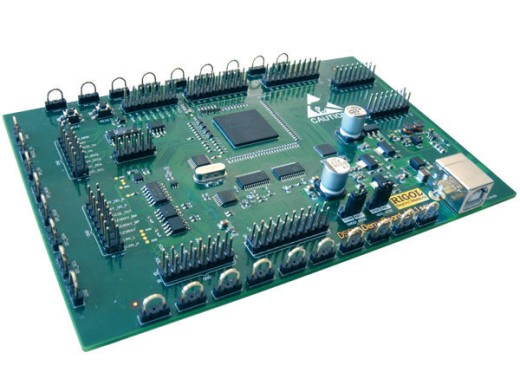

Rigol demo board for oscilloscopes. This demo board generates a large number of analogue and digital signals which can be measured by an oscilloscope. The signals produced by the demo board are handy when demonstrating the functionality of oscilloscopes.
Protocols
- Square signal
- Sine signal
- Digital-to-analog (DA) signal (filtered/unfiltered)
- Differential signal
- PAL video signal
- NTSC video signal
- Amplitude modulated signal (AM)
- Sine signal superimposed with noise
- Slow sweep signal
- Fast sweep signal
- Signal with phase deviation
- Rare abnormal signal
|
- Frequent abnormal signal
- Manual abnormal signal
- Manual burst
- Narrow pulse
- Sine signal superimposed with glitch
- Square signal superimposed with glitch
- Crosstalk signal
- RS232/UART signal
- SPI signal
- I2C signal
- CAN signal
- Signals for testing logic analyzer
|
For more information, you can check the user manual.
