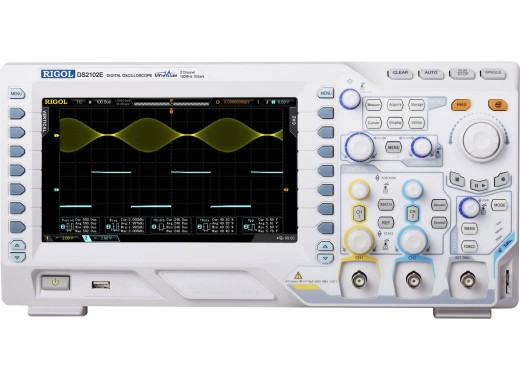

Rigol DS2102E oscilloscoop
Details
The Rigol DS2102E is an economy model oscilloscope in the DS2000E series from Rigol. These oscilloscopes are equipped with 2 channels with a bandwidth of 100 or 200 MHz and a sample rate of 1GS/s on both channels. Measurements can be viewed on the 8" WVGA LCD screen, but the DS2000E can also be connected to a PC for the transfer of measurement results. Measurement results can also be stored on a USB memory stick via the front USB port.
With a waveform capture rate of up to 50,000 wfm/s, these oscilloscope signals can be analyzed quickly and any problems can be found quickly.
Optionally an Advanced Trigger, Serial Decode and Memory Expansion options are available. These options are explained in more detail at the bottom of the page.
Models
The models in the Rigol DS2000E series only differ in bandwidth.
| DS2102E | DS2202E | |
|---|---|---|
| Bandwidth | 100 MHz | 200 MHz |
| Price |
Specifications
| Sample rate | 1GS/s per channel |
| Memory | 28Mpts (14Mpts per channel) |
| Display | 8" TFT, 800x480 pixels 160,000 colors |
| Imputimpedance | 1 MΩ or 50 Ω |
| Channels | 2 |
| Horizontal scale (input) |
DS2102E: 5 ns/div - 1000 ks/div DS2202E: 2 ns/div - 1000 ks/div |
| Vertical sensitivity (input) |
500 μV/div - 10 V/div |
| A/D convertor | 8 bits resolution |
| Maximum voltage | CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk |
| Probe support | 0.01x - 1000x |
| Interfaces | USB Host (USB-GPIB supported), USB Device, LAN, Aux Output (TrigOut/PassFail) |
| Weight (without box) | 3.9 Kg |
Options
| Advanced Trigger Option | With this software you can activate all trigger options. (Windows Trigger, Nth Edge Trigger, Delay Trigger, TimeOut Trigger, Duration Trigger, USB Trigger) | |
| Serial Decoding option | With this software option you are able to decode RS232, I²C and SPI with your Rigol DS2000 series oscilloscope. |
Accessories
This oscillscope is supplied including:
- 2 passive 1x/10x probes (35/350 MHz , type PVP2350)
- USB cable
- Power cord
- Quickstart guide
- User manual
- 3 years warranty
