568.6 €568.60 Excl. VAT
In Stock

Be the first to review this product

Deal: You now receive all 4 software options (worth € 809,00) for free with the purchase of a DS1000Z series oscilloscope! You don't have to do anything for this, they are already active from the factory!

Details

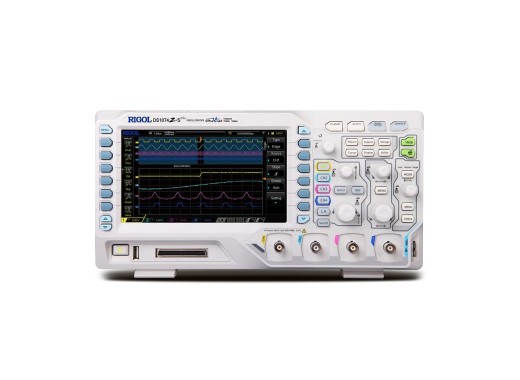

The Rigol DS1074Z-S+ features 4 channels and is of very high quality, comparable to the quality of Keysight and Tektronix oscilloscopes. This oscilloscope has a sample rate up to 1 GS / s, a memory of 12 Million points, and a clearly readable 7 "LCD screen.

This oscilloscope has a USB interface that can be used to transfer measurement data to a PC. Measurement results can also be stored on USB memory stick via the USB port on the front. Due to the 30000 wfm/s refresh rate it is possible to quickly analyze signals and find any problems that might occur in the signal.

Model numbers ending with an "S" are identical to the "S"-less models but are also equipped with a 2-channel, 25 MHz function generator.

Update: The DS1000Z scopes offer a better FFT functionality due to a recent software update. As a result, the FFT can no longer be calculated on the basis of the points that are displayed on the screen, but 16 points from the memory are used for this purpose. This makes the FFT more precise.

Knowdlegde base

In February 2016 we added a article to the knowledge centre in which we compare budget 4 channel oscilloscopes. Here we compare the DS1054Z with an alternative of GW Instek.

Modeloverview

The main specification differences between the different oscilloscopes in the DS1000Z series are the bandwidth and the presence of a function generator. The models with a plus behind them can be converted into MSO versions. For this you need to order the RPL1116 option.

The main differences are highlated below in a table:

ModelBandwidthDigital channelsFunctiongeneratorPrice
DS1054Z50 MHz no no 323.97 €323.97 Excl. VAT
DS1074Z+70 MHzUpgradeable no 391.74 €391.74 Excl. VAT
DS1074Z-S+70 MHzUpgradeable yes 568.6 €568.60 Excl. VAT
DS1104Z+100 MHzUpgradeable no 432.23 €432.23 Excl. VAT
DS1104Z-S+100 MHzUpgradeable yes 609.09 €609.09 Excl. VAT



Specifications

The following specifications apply to all models in the Rigol DS1000Z series, unless otherwise indicated.

Memory 12 MB/ 12Mpts  (divided by number of channels).
Sample rate 250 MS/s (4 channels active),
500 MS/s (2 channels active)
1 GS/s (1 channel active)
Display 7" TFT, 800x480 pixels 160,000 colors
Input impedance 1 MΩ
Number of channels 4
Horizontal scale
(input)
5 ns/div - 50s/div

Vertical Sensitivity
(input)
1 mV/div - 10 V/div
A/D converter 8 bits resolution
Maximum voltage CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 100Vpk
Rise Time DS1104Z: 3.5 ns
DS1074Z: 5 ns
Probe support 0.1x - 1000x
Number of channels 4
Measured noise value 1 mVpp (at 100ms,1mV/div, record length: 3Mpts)
Connections USB 2.0 type A, USB 2.0 type B, LAN
Weight (without box) 3.2 Kg
Dimensions 313 x 161 x 122 mm


Function generator specifications (S models only)

Sample Rate
200 MS/s
Vertical Resolution 14 bits
Number of channels  2
Maximum frequency  25 MHz

Accessories

Oscilloscopes from the DS1000Z series come standard with:

  • 4 passive 1x/10x probes (150 MHz , type RP2200)
  • USB data cable
  • Power cord
  • Manual
  • 3 year warranty

Options

There are 4 software options available that you can order if they are not already installed on the scope. You can add one or more options as a separate product to your shopping basket. You do this by clicking on the link to the product page of the option, and clicking on the order button. Then when you order the scope, these options are all pre-installed to the device.

The possible options:

Description Price
Memory expansion to 24 Mpts 157.02 €157.02 Excl. VAT
Advanced Trigger option 231.4 €231.40 Excl. VAT
Protocol decoding (RS232, I²C, SPI) option 164.46 €164.46 Excl. VAT
Record Module 115.7 €115.70 Excl. VAT
