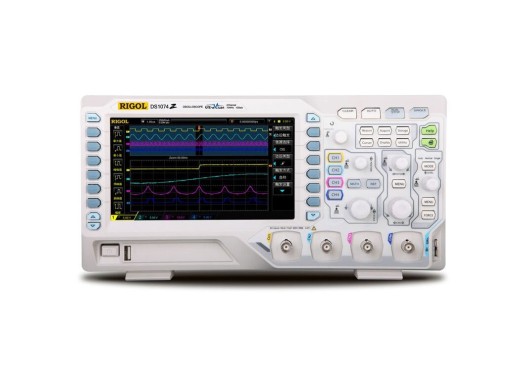

The Rigol DS1074Z features 4 channels and is of very high quality, comparable to the quality of Keysight and Tektronix oscilloscopes. This oscilloscope has a sample rate up to 1 GS / s, a memory of 12 Million points, and a clearly readable 7 "LCD screen.
This oscilloscope has a USB interface that can be used to transfer measurement data to a PC. Measurement results can also be stored on USB memory stick via the USB port on the front. Due to the 30000 wfm/s refresh rate it is possible to quickly analyze signals and find any problems that might occur in the signal.
Update: The DS1000Z scopes offer a better FFT functionality due to a recent software update. As a result, the FFT can no longer be calculated on the basis of the points that are displayed on the screen, but 16 points from the memory are used for this purpose. This makes the FFT more precise.
Bandwidth | 70 MHz |
Digital Channels | no |
Function generator | no |
Sample Rate | 1 Gs/s |
Sample Rate (all channels active) | 250 Ms/s (per channel) | Memory | 12Mpts (divided over the channels). |
Display | 7" TFT, 800x480 pixels 160,000 colors |
Input impedance | 1 MΩ |
Channels | 4 |
Horizontal schale (input) |
5 ns/div - 50s/div |
Vertical sensitivity (input) |
1 mV/div - 10 V/div |
A/D convertor | 8 bits resolutie |
Maximal voltage | CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 100Vpk |
Rise Time | 5 ns |
Probe support | 0.1x - 1000x |
Connections | USB 2.0 type A, USB 2.0 type B, LAN |
Weight (without box) | 3.2 Kg |
Dimensions | 313 x 161 x 122 mm |
Oscilloscopes from the DS1000Z series come standard with:
Deal: You now receive all 4 software options (worth € 809,00) for free with the purchase of a DS1000Z series oscilloscope! You don't have to do anything for this, they are already active from the factory!
There are 4 software options available that you can order if they are not already installed on the scope. You can add one or more options as a separate product to your shopping basket. You do this by clicking on the link to the product page of the option, and clicking on the order button. Then when you order the scope, these options are all pre-installed to the device.
The possible options:
Description | Price |
Memory expansion to 24 Mpts | |
Advanced Trigger option | |
Protocol decoding (RS232, I²C, SPI) option | |
Record Module |
