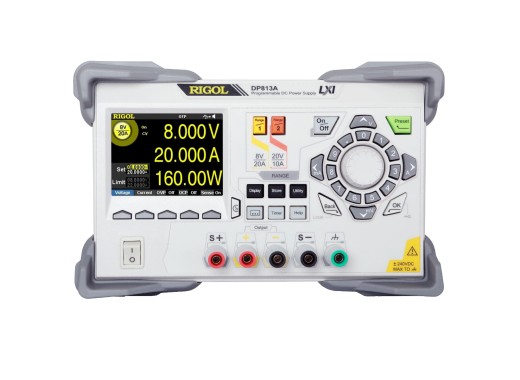

The Rigol DP813A belongs to the Rigol DP800 series and has 1 channel. The power supply has two ranges that can be used on the single channel, 0-8V/0-20A and 0-20V/0-10A. These lab power supplies also have a 'sense' function that ensures that the voltage drop between the load and power supply is compensated. Furthermore the lab power supply has USB Host, USB Device, LAN, RS232, Digital I/O interfaces and a color display. These Rigol lab power supplies have a good price / quality ratio, are very accurate and have a power up to 200W. The lab power supplies are equipped with a clear display on which the built-in voltage, current and power measurements are displayed numerically and graphically. Furthermore they can also be programmed with the supplied software via a PC.
Model | DP811 | DP813 | DP821 | DP822 | DP831 | DP832 |
---|---|---|---|---|---|---|
Outputs | 1 | 1 | 2 | 2 | 3 | 3 |
Power | 200W | 200W | 140W | 180W | 160W | 195W |
Voltage | Range 1: 0-20V Range 2: 0-40V |
Range 1: 0-8V Range 2: 0-20V |
CH1: 0-60V CH2: 0-8V |
CH1: 0-20V CH2: 0-5V |
CH1: 0-8V CH2: 0-30V CH3: 0-(-30V) |
CH1: 0-30V CH2: 0-30V CH3: 0-5V |
Current | Range 1: 0-10A Range 2: 0-5A |
Range 1: 0-20A Range 2: 0-10A |
CH1: 0-1A CH2: 0-10A |
CH1: 0-5A CH2: 0-16A |
CH1: 0-5A CH2: 0-2A CH3: 0-2A |
0-3A |
Resolution | 10 mV / 10 mA | 10 mV / 10 mA | CH1: 10mV/1mA CH2: 10mV/10mA |
10 mV / 10 mA | 1 mV / 1 mA | 10 mV / 1 mA |
USB Host, USB Device | yes |
yes |
yes |
yes |
yes |
yes |
Price | ||||||
-A models | DP811A | DP813A | DP821A | DP822A | DP831A | DP832A |
Resolution | 1 mV / 1 mA | 1 mV / 1 mA | 1 mV / 0.1 mA | 1 mV / 1 mA | 1 mV / 0.1 mA | 1 mV / 1 mA |
LAN, RS232, digital I/O | yes |
yes |
yes |
yes |
yes |
yes |
Price |
Display | 3.5" TFT |
Dimensions | 239 x 157 x 418 mm |
Weight | 10.3 kg |
The DP813A comes standard with:
DP800 datasheet |
(2.52 MB) | Download |
DP800 user guide |
(3.2 MB) | Download |
