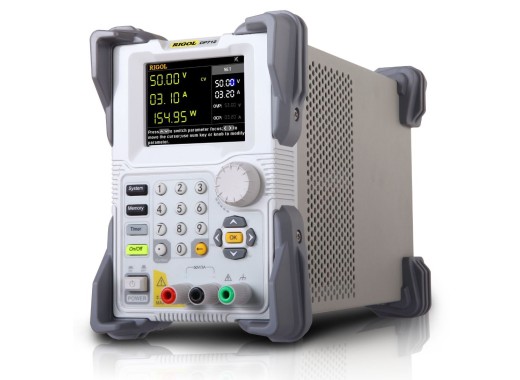

Rigol DP712 power supply
Details
The Rigol DP712 belongs to the DP700 series of Rigol and can measure up to 0-50V and 0-3A.
The Rigol DP700 series power supplies have a good price/quality ratio and can be operated via RS232. These models have one channel with the power of 150W.
Usage
On the TFT screen of these power supplies, both the set voltage, set current and the corresponding power are displayed simultaneously. By using the buttons, you can easily set these values. The output is precisely regulated to the set value. It is possible to use an optional timing function to have various settings automatically sequenced in order to perform certain tests. In addition, up to 10 settings can be stored for quick retrieval.
Models
| Model | DP711 | DP712 |
|---|---|---|
| Power | 150 Watt | 150 Watt |
| Voltage | 0-30V | 0-50V |
| Current | 0-5A | 0-3A |
| Price |
Specifications
| Line regulation | < 0.01% (CC), < 0.01% (CV) |
| Ripple | < 500µVrms (CC), < 2mArms (CV) |
| Display | 4.3" LCD |
| Connectivity | RS232 |
| Dimensions | 140 x 202 x 332 (mm) |
| Weight | 6.9 kg |
Accessories
The Rigol DP712 comes with the following accessories:
- Quick start guide
- Power cord
Downloads
| Rigol DP700 Datasheet |
 (2.15 MB) |
Download |
| Rigol DP700 Quick Start Guide |
(417.2 KB) |
Download |
| Rigol DP700 Programming Guide |
(1.34 MB) |
Download |
