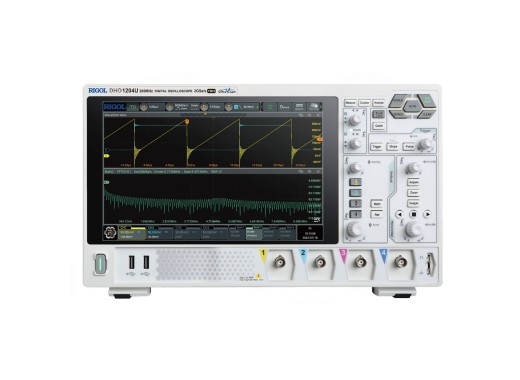

Rigol DHO1204U oscilloscope
Details
The Rigol DHO1204U is a 4-channel oscilloscope and the 200MHz bandwidth model in the DHO1000U series. Whereas many oscilloscopes use an 8-bit vertical resolution, this product comes with a 12-bit resolution to reduce quantization uncertainty and in turn improve signal fidelity and analysis capabilities. This can even be increased to 16-bit in high-resolution mode, enabling even higher detection of variations in incoming signals.
This product features a large 10.1" touchscreen, 8GB of internal memory and a high capture rate. With UltraAcquire mode it is possible to increase the capture rate up to 500,000 wfms/s. Multiple interface options include USB 3.0 ports (2x in the front and 1x in the back), LAN, HDMI, Pass/Fail and Trigger Out. LAN web control is also supported which allows for the operation interface to be displayed in a web browser.
The oscilloscope offers extensive measurement and analysis possibilities. Up to 500,000 frames with data can be recorded and played for extensive analysis. In addition, the product has a very low noise floor, making measurements on very small signals possible and resulting in cleaner signals.
Please note, the images are of the DHO1204 model. Other 4CH models have a similar layout.
Model overview
The models in this series differ mainly in bandwidth, available channels, waveform capture rate and rise time.| Model | Bandwidth | Channels | Memory depth | Waveform capture rate | Rise time | Price |
| DHO1072 | 70 MHz | 2 | 50 Mpts | 50,000 wfm/s (vector mode) 1,500,000 wfm/s (UltraAcquire mode) | ≤ 5 ns | |
| DHO1074 | 70 MHz | 4 | 50 Mpts | 50,000 wfm/s (vector mode) 1,500,000 wfm/s (UltraAcquire mode) | ≤ 5 ns | |
| DHO1102 | 100 MHz | 2 | 50 Mpts | 50,000 wfm/s (vector mode) 1,500,000 wfm/s (UltraAcquire mode) | ≤ 3.5 ns | |
| DHO1104 | 100 MHz | 4 | 50 Mpts | 50,000 wfm/s (vector mode) 1,500,000 wfm/s (UltraAcquire mode) | ≤ 3.5 ns | |
| DHO1202U | 200 MHz | 2 | 25 Mpts | 30,000 wfm/s (vector mode) 500,000 wfm/s (UltraAcquire mode) | ≤ 1.75 ns | |
| DHO1202 | 200 MHz | 2 | 50 Mpts | 50,000 wfm/s (vector mode) 1,500,000 wfm/s (UltraAcquire mode) | ≤ 1.75 ns | |
| DHO1204U | 200 MHz | 4 | 25 Mpts | 30,000 wfm/s (vector mode) 500,000 wfm/s (UltraAcquire mode) | ≤ 1.75 ns | |
| DHO1204 | 200 MHz | 4 | 50 Mpts | 50,000 wfm/s (vector mode) 1,500,000 wfm/s (UltraAcquire mode) | ≤ 1.75 ns |
Specifications
| Memory depth | 25 Mpts (divided by number of active channels) |
| Sample rate | 2 GSa/s (divided by number of active channels) |
| Waveform capture rate | 30,000 wfm/s (vector mode) 500,000 wfm/s (UltraAcquire mode) |
| Vertical resolution | 12 bits 16 bits (high resolution mode) |
| Vertical scale | 500 μV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1 ks/div |
| Interfaces | LAN, HDMI, USB Host/Device, Pass/Fail, Trigger Out |
| Decoding options | Parallel, RS232/UART, I2C, SPI, CAN, LIN |
| Display | 10.1'' LCD touchscreen (1280*800) |
| Dimensions | 358.14 x 214.72 x 120.62 mm |
| Weight | 3.8 kg |
Accessories
The following accessories are included with this oscilloscope:
- Power cord
- USB cable
- 4x passive HighZ probes (350 MHz)
Pros and cons
- 12-bit resolution in standard mode
- 16-bit in high resolution mode
- Large touchscreen
- 2 GSa/s single channel sample rate is on the lower end for 12-bit resolution
- No logic analyser
Downloads
| Rigol DHO1200 series datasheet |  (8.95 MB) | Download |
