Rigol DG70004 function generator
Details

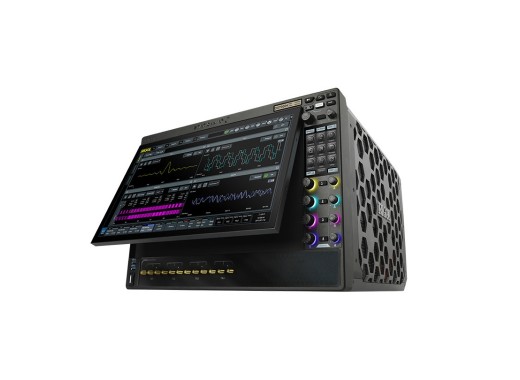

The Rigol DG70004 function generator is a high-end device designed on the new "SiFi III" technical platform. It supports multiple signal output modes, including sequence output, precise trigger output, continuous output, and pattern jump output. Additionally, it features adjustable sample rates, IQ modulation, DUP, fast frequency hopping, and direct digital synthesis. The function generator offers accurate and adjustable sample rates of up to 5GSa/s (12GSa/s interpolated) and 16-bit high-fidelity resolution. It can recover signals without distortion and generate arbitrary waveforms point by point. With multi-channel high-precision synchronization, a high bandwidth of up to 5GHz, and low-jitter waveform output, it is suitable for various industrial and communications applications, as well as scientific research. This series features a 7U full-rack structure with two touch screens, introducing a brand-new UI design and providing a great user experience. The screen on this model is a 15.6" 2k HD touchscreen with an adjustable viewing angle.
Model overview
| Model | DG7002 | DG7004 |
|---|---|---|
| Channels | 2 | 4 |
| Price |
Specifications
| Bandwidth | 5 GHz |
| Vertical resolution | 16 bits |
| Sample rate | 5 GSa/s 12 GSa/s (interpolated) |
| Amplitude range | DC HBW 350 mVpp ~ 700 mVpp (single-ended, 50 Ω terminated) 700 mVpp ~ 1400 mVpp (differential, 100 Ω terminated) DC AMP 25 mVpp ~ 1000 mVpp (single-ended, 50 Ω terminated) 50 mVpp~2000 mVpp (differential, 100 Ω terminated) AC -20 dBm ~ +10 dBm |
| Waveform length | 2.4 kpts - 500 Mkpts |
| Output impedance | 50 Ω |
| Interfaces | LAN, USB3.0, HDMI |
| Display | 15.6" 2k HD touchscreen with an adjustable viewing angle |
| Dimensions | 439 x 310 x 491 mm |
| Weight | 22.5 kg |
