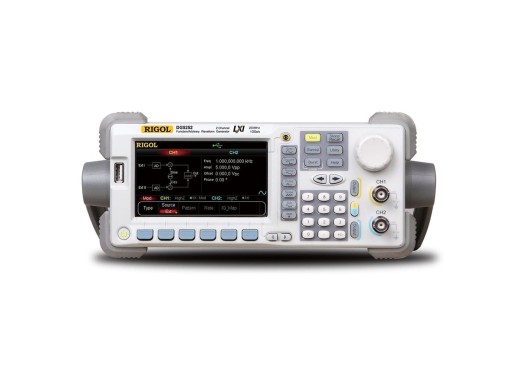

The Rigol DG5252 is a dual-channel arbitrary function generator with a maximum frequency of 250MHz and a high sample rate of 1GSa/s. The channels are isolated and equivalent to each other.
The DG5252 is part of the Rigol DG5000 series of function generators, which features the direct digital synthesizer (DDS) technology, capable of providing stable, precise, pure and low distortion signals. The two channels are equivalent to each other and their phase deviation is precisely adjustable. The generator is multifunctional and includes many features such as a pulse generator, IQ modulation, rich sweep function, and frequency hopping. The device is easily accessible and controlled with the 4.3" touchscreen LCD.
Model overview
| Model
| Bandwidth
| Channels
| Price
|
| DG5071
| 70 MHz | 1 |
1607
€1,607.00
Excl. VAT
|
| DG5072
| 70 MHz | 2 |
2361
€2,361.00
Excl. VAT
|
| DG5101
| 100 MHz | 1 |
3303
€3,303.00
Excl. VAT
|
| DG5102
| 100 MHz | 2 |
3859
€3,859.00
Excl. VAT
|
| DG5251
| 250 MHz | 1 |
5656
€5,656.00
Excl. VAT
|
| DG5252
| 250 MHz | 2 |
6910
€6,910.00
Excl. VAT
|
| DG5351
| 350 MHz | 1 |
8295
€8,295.00
Excl. VAT
|
| DG5352
| 350 MHz | 2 |
10995
€10,995.00
Excl. VAT
|
Specifications
| Vertical resolution | 14 bits |
| Sample rate | 1 GSa/s |
| Frequency resolution | 1 µHz |
| Amplitude range | 5 mVpp - 10 Vpp |
| Waveform length | 128 Mpts |
| Modulation | AM, FM, PM, ASK, FSK, PSK, PWM |
| Built-in functions | Sine, square, ramp, pulse, noise, sinc, exponential rise/fall, ECG, gauss, haversine, Lorentz, dual tones, DC |
| Output impedance | 50 Ω |
| Interfaces | USB host/device, LAN, GPIB |
| Display | 4.3" TFT LCD |
| Dimensions | 230 x 106 x 501 mm |
| Weight | 4.3 kg |
Accessories
The DG5252 comes with:
- 1x Power cord
- 1x USB cable
- 1x BNC cable
