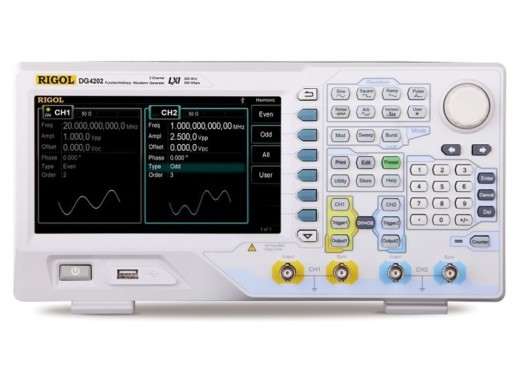

Rigol DG4202 function generator
Details
The Rigol DG4202 function generator has a bandwidth up to 200 MHz and a sample rate of 500MSa/s.
The DG4000 series 2 channel arbitrary waveform generators offer a high bandwidth and broad amplitude. A variety of analogue and digital modulation functions and two completely individual channels offer great usability. The large 7" display adds to usability as settings can be viewed and changed easily.
The DDS technology which these generators feature allows for generation of stable and precise signals with low distortion. Up to 130 arbitrary waveforms are built-in for easy generation. A harmonics generation feature allows for generation up to the 16th order harmonic. Apart from that, the devices offer a very precise frequency counter.
Models
| Model | DG4062 | DG4102 | DG4162 | DG4202 |
| Bandwidth sinus | 60 MHz | 100 MHz | 160 MHz | 200 MHz |
| Bandwidth square | 25 MHz | 40 MHz | 50 MHz | 60 MHz |
| Bandwidth arbitrary | 15 MHz | 25 MHz | 40 MHz | 50 MHz |
| Price |
Specifications
| Channels | 2 |
| Max amplitude | 10 Vpp |
| Sample rate | 500 MSa/s |
| Vertical resolution | 14 bit |
| Waveform length | 16 kpts |
| Frequency resolution | 1 μHz |
| Precision | ± 2 ppm |
| Modulation | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK en PWM |
| Connectivity | USB (Host/Device), LAN |
| Display | 7" 800x480 TFT-LCD |
Accessories
The function generator comes with the following accessories:
- Warranty
- Manual
- Power cord
- USB cable
- BNC cable
- Quick-start guide
