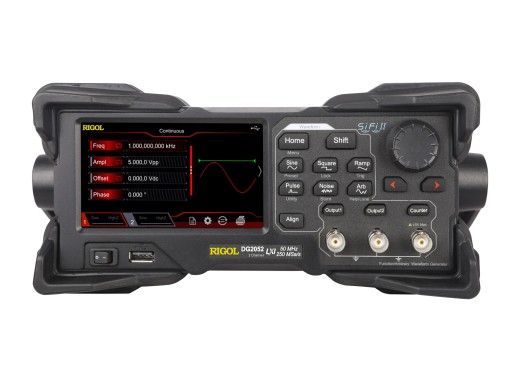

Rigol DG2052 function generator

This is the same product as the Rigol DG952, only this model is rack-mountable and has a LAN interface.

The DG2000 series from Rigol is the bigger brother of the DG800 series and is a series of very extensive and affordable function generators. The DG2052 is the model with a bandwidth of 50 MHz. All models in the DG2000 series have a vertical resolution of 16 bits which you normally only find in function generators in a higher price range. The big difference with the DG800 series is a larger waveform length and a significantly larger sample rate.
This series of function generators have a large number of different output signals and it is possible to combine standard waveforms with specific waveforms. A new "SiFI II" technology is used to generate the waveforms. This technology generates the random waveforms point-wise and ensures that the signal can be restored without distortion. Furthermore, this series has 160 built-in 'arbitrary waveforms' with which many signals from technical applications can be simulated.
The screen of these generators is a 4.3" TFT colour touch screen with which you can easily set all the settings for the desired function (example shown on the third picture). Furthermore, these generators also have a USB port that serves as a Host&Device interface.

If you are looking for a model which does not have to be rack mountable? Have a look at the Rigol DG952.

Model overview

The difference between the models is in the bandwidth

Model	DG2052	DG2072	DG2102
Bandwidth	50 MHz	70 MHz	100 MHz
Price	539 €539.00 Excl. VAT	729 €729.00 Excl. VAT	899 €899.00 Excl. VAT

Specifications

Channels	2
Output signals	Sinus, Block, Ramp, Pulse, Harmonic, DC, Noise, PRBS, Dual-tone, RS232
Vertical resolution	16 bits
Sample Rate	250 MSa/s
Frequency Resolution	1 μHz
Waveform length	16 Mpts
Amplitude range	<10 MHz: 1 mVpp - 10 Vpp <30 MHz: 1 mVpp - 5 Vpp <60 MHz: 1 mVpp - 2.5 Vpp >60 MHz: 1 mVpp
Modulation	AM, FM, PM, ASK, FSK, PSK, PWM
Output Precision	± (1% + 5 mV)
Frequency counter bandwidth	240 MHz (7 digits/s)
Output Impedance	50 Ω
Display	4.3" TFT LCD touch screen (480 x 272)
Interfaces	USB Host, USB Device, LAN
Weight	3.2 Kg
Dimensions	261.5x112x318.4 mm

Accessories

The DG2000 series comes standard with:

• Power cord
• BNC cable
• USB cable
• Manual
