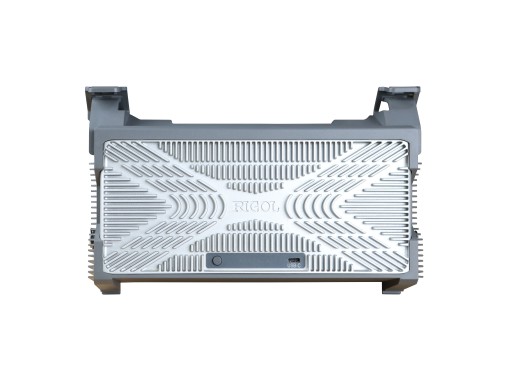

Rigol BatHolder350
Details
The Rigol BatHolder350 is a compact battery holder designed specifically for the DHO4000 and MHO/DHO5000 series of 12-bit oscilloscopes. It can be used to provide an uninterrupted power supply, particularly in situations where an AC power source is not readily available. It uses 24 standard 18650 lithium battery cells, which can all be easily swapped. The battery holder has a maximum capacity of 3500 mAh, which allows for roughly 4-6 hours of use. The battery holder allows for independent charging through USB-C and an activator, which is provided, or through the oscilloscope directly (AC power applied). It also has cell balancing and battery protection methods, protecting it from over voltage, under voltage, over current, short circuit, and high and low temperatures.
Note:The Batholder350 is comes without 18650 battery cells. You need a minimum of 12 cells for the device to function. This can be extended upto 24 18650 battery cells
Specifications
| Battery type | 3.7 V 18650 standard lithium-ion secondary battery |
| Input voltage / current | 12 V / 9 A (instrument's internal power supply), 12 V / 3 A (activator) |
| Maximum output voltage / current | 11.66 V / 30 A |
| Maximum battery capacity | 3500 mAh |
| Charging method | CC - CV |
| Battery internal resistance | < 70 mΩ |
| Dimensions | 235.5 x 99.2 x 61 mm |
| Weight | 874 g (without batteries), 2.020 kg (with batteries) |
Accessories
The Rigol Batholder350 battery holder comes with:- 1x Battery holder mounting frame
- 1x Battery holder activator
Downloads
| BatHolder350 user manual |  (13.02 MB) | Download |
