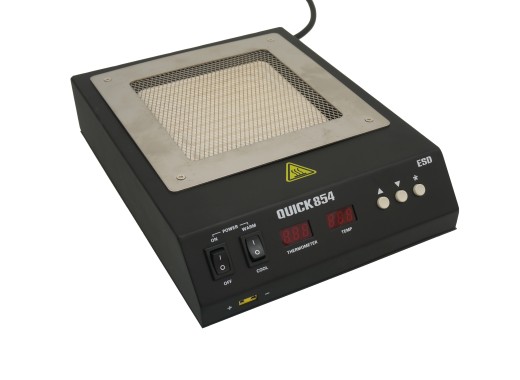

This ESD safe infrared preheater heates up very fast due to the 600W of power and infrared ceramic heater with very high efficiency. The plate has a size of 13 x 13 cm, which is sufficient for most preheating jobs, and can reach temperatures up to 350 degrees Celcius. The user interface is very basic which makes it easy to control. An internal closed-loop temperature sensor makes sure that the temperature remains constant and is accurate. With an external K-type thermocouple you can easily measure the temperature of the PCB.
The preheater is ideal for reworking PCB's. It can even be used for heavy copper ground plates, PCB's that are multilayered or that contain solder alloys that need some extra heat. There is a stainless steel net on top of the plate to place the PCB's on.
Power | 400W |
Dimensions | 255 x 200 x 63 mm |
Dimensions heater | 130 x 130 mm |
Weight | About 2.5 kg |
Temperature range heater | 50 °C - 350 °C |
Temperature range thermocouple | 0 °C - 600 °C |
Temperature stability | +/- 1 °C |
ESD safe |
Yes
|
The Quick 854 comes with:
