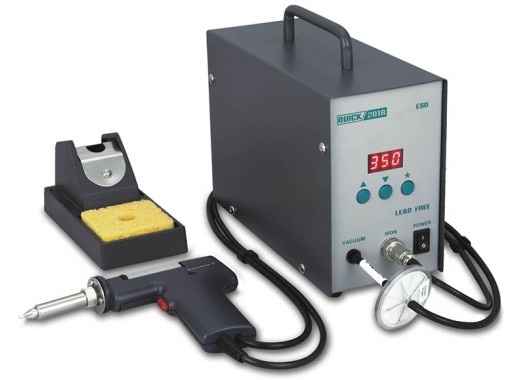

Quick 201B ESD desoldering station
Details
The Quick 201B is a powerful vacuum desoldering station that is ideal for the desoldering of through-hole components. The temperature is accurately controlled by a closed-loop sensor and is easy to adjust by means of the buttons and the clear LCD display. Furthermore, the temperature calibration is controlled by a microprocessor and this station also has an automatic sleeping mode.
The desoldering gun has a fully insulated heating element that operates at a low voltage of 36 Volt and the extracted tin is collected in a spring filter that can be easily cleaned or replaced. Furthermore, the soldering gun also has an indication LED that indicates when the nozzle and/or heating element should be cleaned and when the filter should be replaced.
Specifications
| Power | 90 W |
| Type of pump | Diaphragm |
| Pump power | 12V/2A |
| Temperature | 200°C - 450 °C |
| Vacuum pressure | 600 mm Hg |
| ESD safe |
Yes
|
| Resistance to ground | < 2 Ohm |
| Potential to ground | < 2 mV |
| Weight | 4 kg |
| Dimensions | 105 x 250 x 165 mm |
Accessories:
The 201B package includes the following:
- Basic station
- Desoldering gun
- Desoldering gun stand with sponge
- Three nozzles (1.0mm, 1.3mm, 1.8mm)
- Set of cleaning pins (small)
- Spring cleaning pin (large)
- 10 ceramic small filters
- Three spring filters
- External filter
- 1.8mm shank drill
- Heat resistant pad
- Grounding wire
Downloads
| Quick 201B Desoldeerstation Manual |  (333.98 KB) | Download |
