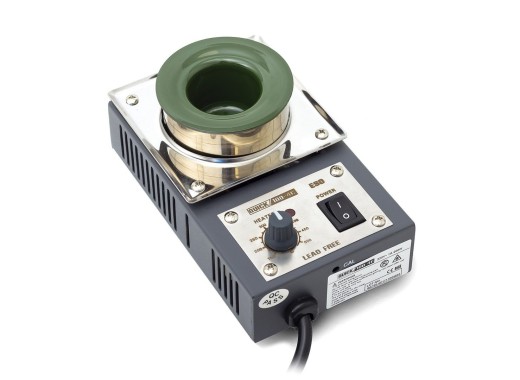

This Quick 100-4C solder pot is a handy and very affordable gadget with which you can prepare components for soldering. In this Quick soldering bath you can melt tin to e.g. desolder PCB connectors, pins or wires to a PCB
The temperature is adjustable between 150 and 500℃ using the rotary knob on the tool.
This product is a smaller version of the Quick 100-15S solder pot.
Specifications
| Diameter | 36 mm |
| Depth | 40 mm |
| Power | 200 W |
| Temperature range | 150 - 500 ℃ |
| Dimensions | 91 x 150 x 75 mm |
| Weight | 860 g |
