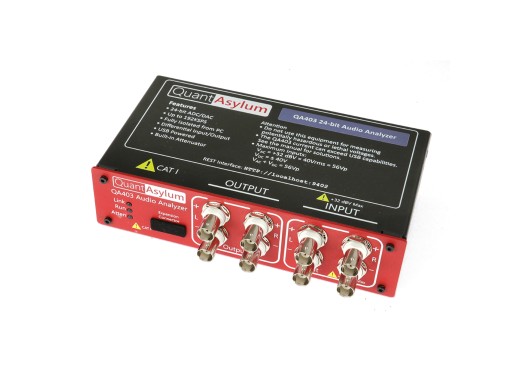

QuantAsylum QA403 audio analyzer
Details
QuantAsylum's QA403 audio analyser has improved noise and distortion performance in comparison to its predecessors and the addition of a flatter response at band edges. This dedicated audio analyser is a driverless USB device; it is ready as soon as you plug it in. The software is free for the QA403, and due to its size, you can easily take it anywhere with you. This audio analyser has a low bandwidth, but a very high 24 bits vertical resolution!
Due to the 8 gain ranges input and 4 gain ranges output, the QA403 delivers consistent performance over wide ranges of in- and output levels. The QA403 supports a REST interface, which makes sure the programmability of this audio analyser is possible in nearly every language. The QA403 is isolated and USB powered, ensuring you are measuring your audio and not some ground loop in the background. If you think a soundcard is too much hassle for too few results, the QA403 is built for you.
Specifications
| Bandwidth | 0 - 20 kHz |
| Ports | 8 |
| Dynamic range | 8 gain ranges input (0 to +42dBV) 4 gain ranges output (-12 to +18dBV) |
| Noise floor | -116 dB |
| Max. input voltage | DC:± 50 V AC: ±40 Vrms |
| Sampling rate | 192 kS/s |
| Interfaces | REST, USB |
| Dimensions | 177 x 44 x 97 mm |
| Weight | 435 g |
Pros and cons
- High vertical resolution of 24 bits
- Easily programmable in almost every language
- Low bandwidth
Downloads
| QA403 user Manual |  (1.07 MB) | Download |
| QA403 data sheet | (1.39 MB) | Download |
