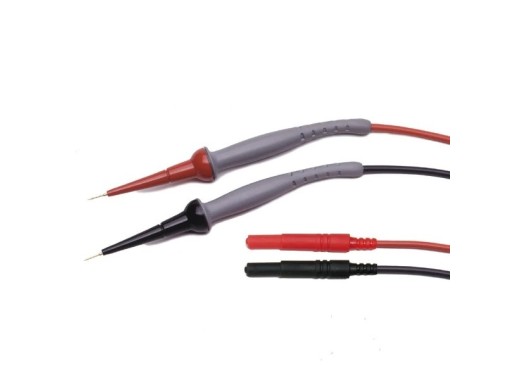

Probe Master 8153 spring loaded test leads

The Probe Master 8153 are a spring-loaded micro-tip test leads for high-density SMD testing. The sharp probe tip is spring-loaded to help keep the probe from slipping off the device during testing. The Probe Master spring-loaded micro-tip test leads are of high quality and made in the USA. It is connected with a straight, retractable banana plug, making them easier to connect to all types of devices such as power supplies with screw terminals.

The Probe Master 8163 needle tip, spring type is included.

Key features:

• Soft comfortable handle
• Silicone wire 120 cm long
• 1000 volts rated
• CAT lll 1000 V, CAT IV 600 V
• 10A
• All tips 23K gold plated

Optional probe tips for the Probe Master 8153 spring loaded micro-chip test lead can be found here.
