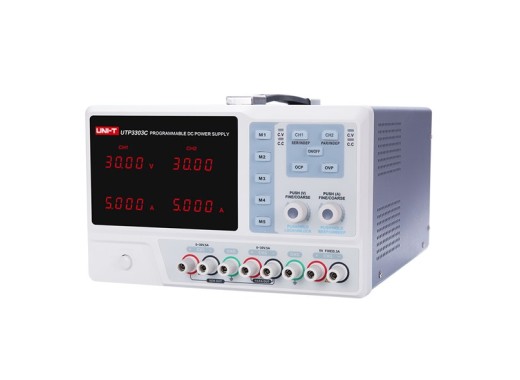

The UTP3303C is a lab power supply with 3 outputs, of which 1 output has fixed values. The values of the variable outputs can be set between 0-30V or 0-3A and they can be set using the (rotary) knobs. An advantage of this power supply is that it has overcurrent and overvoltage protection. It is also possible to connect the channels in series or in parallel. All output values are displayed in 4 digits on the screen.
Channels | 3 (1x fixed) |
Output | 2x 0 - 30 V / 0 - 3 A, 1x 5V/3A |
Accuracy | Voltage: <0.01% +3 mV Current: <0.1%+3 mA |
Ripple | Voltage: < 1 mV rms Current: < 3 mA rms |
Interfaces | USB |
Weight | 5.35 kg |
Dimensions | 260 x 176 x 317 mm |
The UNI-T UTP3303C is supplied including:
Manual UTP 3000C series |
(606.05 KB) | Download |
