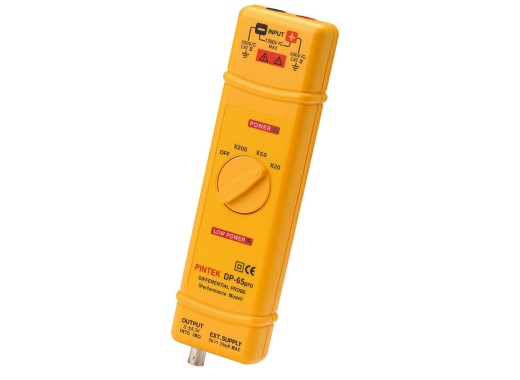

Pintek DP-65 differential probe

The Pintek DP-65 differential probe can be used to safely measure high voltages with floating potentials. This differential probe is suitable for potentials up to 600 V DC or AC to ground or 1300 V differential are measured. Convert high voltage floating signals into low voltage signal relative to ground for display on an oscilloscope.

The output of this probe is optimized for a load with input impedance of 1 MΩ, making this probe suitable for almost all oscilloscopes. This differential probe is powered by an external power adapter that is supplied as standard.

Specifications

• Peak voltage: 1600V
• Attenuation: 20x, 50x, 200x
• Accuracy: |20%± 2%
• Maximum output voltage: ≤ 5.0V
• Connections: BNC
• Bandwidth: 65 MHz

Accessories

• BNC- BNC cable (type BP-250)
• 2x crocodile clips
• 2x precision measuring clamps
• 2x banana plug cable
• 9V DC power adapter

For more information, please refer to the datasheet.
