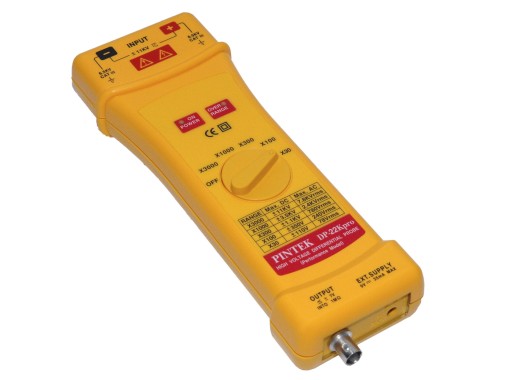

Pintek DP-22K differential probe
Details
The DP-22K Pro is a diffrential probe designed to connect to an oscilloscope, although it can also be connected to multimeters via an adapter. This probe is suitable for use with any oscilloscope. The DP-22K Pro offers an extreme range of 22 kVp-p with a bandwidth up to 120 MHz. All this can weaken the probe with up to 3000x attenuation. So the maximum output is only 5 Vp-p, which is harmless for scopes.
With this wide range, the DP-22K Pro can be used in a wide variety of applications. Only a few signals have a Vp-p of more than 20 kVp-p.
Specifications
| Measuring range voltage | 0 - 7.8 kV RMS 30 mVp-p - 22 kVp-p AC |
| Measuring range frequency | 0 - 120 MHz (100x/300x/1000x/3000x attenuation); 60 MHz (30x attenuation) |
| Measurement deviation | ≤ ±2% |
| Attenuation | 300x, 600x, 1500x, 3000x |
| Input impedance | 100MΩ / 1 pF |
| Output impedance | 50 Ω |
| Safety Category Level | CAT III |
| Dimensions | 240 x 80 x 30 mm |
| Weight | 280 g |
For more information, the manual can be found here.
