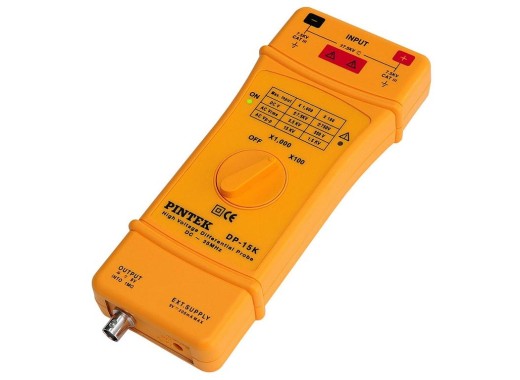

The Pintek DP-15K differential probe can be used to measure very high voltages up to 15 kVpp with floating potentials, with a bandwidth of 75 MHz.
The differential probe has a maximum voltage of 7.5 kV to ground and a switchable attenuation of x100 and x1000.
Model Overview
The Pintek DP-xxK series of differential probes differ mainly in maximum input voltage, attenuation, bandwidth and maximum voltage to ground.
| Model | Max. input voltage | Attenuation (switchable) | Max. bandwidth | Max voltage to ground | Price |
| Pintek DP-15K
| 15 kVp-p | x100, x1000 | 75 MHz | 7.5 kV |
419
€419.00
Excl. VAT
|
| Pintek DP-40K
| 40 kVp-p | x500, x5000 | 75 MHz | 10 kV |
639
€639.00
Excl. VAT
|
| Pintek DP-50K
| 50 kVp-p | x500, x5000 | 75 MHz | 8.8 kV |
859
€859.00
Excl. VAT
|
Specifications
| Max. measurement AC |
15 kVp-p |
Max measurement DC |
7.5 kV |
| Accuracy |
± 2% |
| Input impedance |
54.4 MΩ |
| Output impedance |
50 Ω |
| Dimensions |
220 x 85 x 30 mm |
| Weight |
0.35 kg |
Accessories
The Pintek DP-15K comes with the following accessories:
- Insulated BNC/BNC cable (BP-250).
- AC adapter 9V DC
- 2 x IC clip for high voltage (BP-266N)
- 2 x Banana to banana high voltage plug (BP-366)
- 2 x alligator plug (BP-276N)
