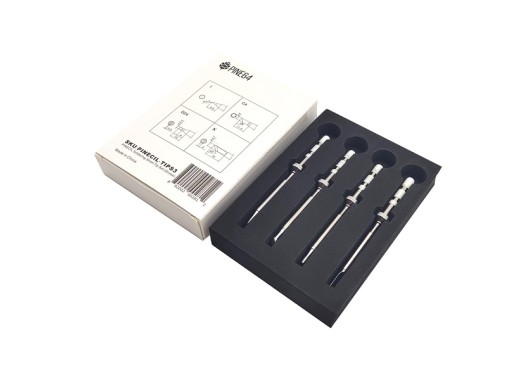

This is a PINECIL short soldering tip set with 4 types of gross tips that can be used as an addition to the PINECIL. The shorter soldering tips are an upgrade to the normal tips, as they can be used more precisely due to their shorter tip length, plus they have a faster heat-up time.
The package includes the following soldering tips: ST-I, ST-C4, ST-D24 and ST-K. The specifications of the soldering tip set are described in the table below.
Conical
| Model | Dimensions tip (mm) |
|---|
| ST-I | ~0.2 mm |
Bevel
| Model | Dimensions tip (mm) |
|---|
| ST-C4 | ~4 mm |
Chisel
| Model | Dimensions tip (mm) |
|---|
| ST-D24 | 2.4 mm |
Knife
| Model | Length tip (mm) |
|---|
| ST-K | 15 mm |
