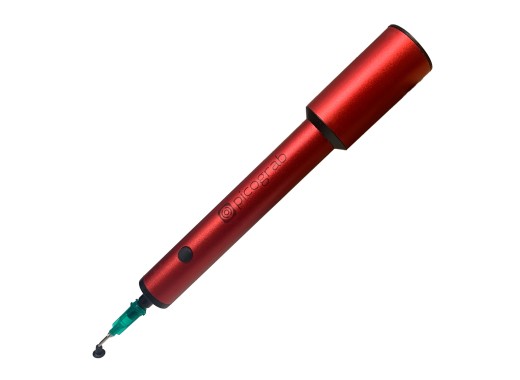

Picograb V1 vacuum pick-up tool
Details
The Picograb V1 is a battery operated vacuum pick-up tool from Picograb, and is suitable for SMD assembly, rework and repair. Furthermore, this pick-up tool pairs strong diaphragm suction with a compact aluminium body of just 36g, so even the smallest components are held securely and placed with precision. A rechargeable lithium battery delivers up to 10 hours of continuous use per charge, with fast top-ups over USB-C.
Interchangeable pick-up needles and suction cups make the tool versatile across a wide range of SMD components, from tiny passives to larger parts weighing up to 120g. LED indicators show the battery level and operating status at a glance, and the ergonomic aluminium body keeps handling comfortable during long assembly sessions. An optional stainless steel desktop stand and a premium hard case are available separately.
Specifications
| Power | Rechargeable lithium battery |
| Battery life | Up to 10 hours |
| Charging | USB-C |
| Suction | Diaphragm suction |
| Maximum lift | 120 g |
| Body material | Aluminium |
| Weight | 36 g |
| Dimensions | 152 x 23 mm |
| Indicators | LED battery and status |
| Compliance | CE, UKCA, RoHS |
Accessories
- 3x straight pick-up needles (18, 20 and 22 gauge)
- 3x bent pick-up needles (18, 20 and 22 gauge)
- 3x suction cups (3mm, 5mm and 10mm)
- 1x USB-C charging cable
Pros and cons
- Cordless operation on a rechargeable battery, ready to use anywhere
- Strong diaphragm suction in a compact, cordless tool
- Interchangeable needles and cups suit a wide range of SMD components
- Desktop stand and hard case are sold separately
