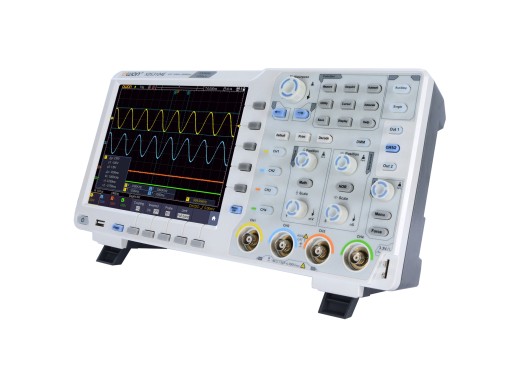

Owon XDS3204AE oscilloscope
Details
The Owon XDS3204AE is the 200MHz version in Owon's XDS3004AE series. The XDS series is Owon's new product line based on the successful SDS series. The performance is very good with a large memory and fast update speed.
The most striking thing is the 14 bit ADC that has this scope on board instead of the usual 8 bit. Only more resolution wouldn't have any added value if we didn't also work on the noise floor. And Owon did not forget this. The vertical sensitivity starts at this scope not at 5mV but at 1mV, and continues to 10V/div.
Models
There are different versions of the XDS3004AE, the table below shows the differences.
| XDS3064AE | XDS3104AE | XDS3204AE | |
|---|---|---|---|
| Bandwidth | 60 MHz | 100 MHz | 200 MHz |
| VGA connection | Yes | Yes | Yes |
| Price (incl. VAT) |
Difference 8-bit and 12-bit ADC
In the movie below you can see the difference between an 8-bit converter and a 12-bit analog-digital converter. It even has 14-bits.
Specifications
| Sample rate | 1 GSa/s |
| Memory depth | 40 MPts |
| Waveform capture rate | up to 70 000 Wfm/s |
| Channels | 4 |
| Horizontal scale | 2 ns/div - 1000s/div |
| Vertical resolution | 1 mV/div - 10 V/div |
| Decoding possibilities (delivered free of charge from the factory) | IIC, SPI, RS232, CAN |
| Maximum voltage | 200V RMS |
| Input impedance | 1 MΩ and 15 pF |
| Display | 8" LCD, 800x600 pixels, Touchscreen |
| Weight | 2.6 kg |
| Dimensions | 340 x 177 x 90 mm |
Options
The following options are included for free with the XDS3204AE:
- VGA
- LAN
- Touchscreen LCD
- I2C, SPI, RS232, CAN
- Magnifier
The configuration of options cannot be changed.
Accessories:
The Owon XDS3004AE series of oscilloscopes are supplied with the following accessories:
- Power cord
- CD Rom with PC software
- Manual
- USB cable
- 4 probes
Pros and cons
- 14 bit ADC
- Touchscreen
- Free decoding options
