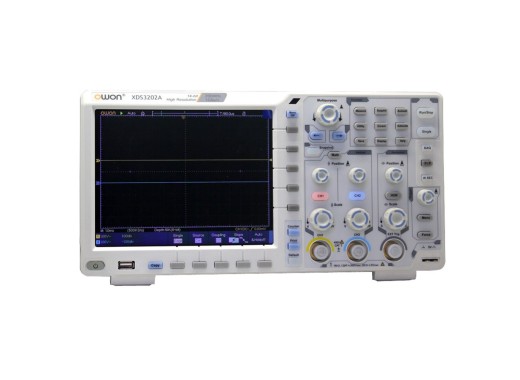

Owon XDS3202A oscilloscope
Details
The XDS series is the new product line of Owon based on the succesful SDS series. The performances are outstanding, with a memory depth of 40 Megapoints and 75.000 waveforms per second waveform capture rate.
The big advantage of this A-version scope compared to others is the 14-bit ADC instead of the more common 8-bit ADC. Only improving the resolution would not be as valuable if Owon would not have improved the noise floor as well. And Owon did not forget this. For this scope the vertical sensitivity begins at 1mV, instead of 5mV, and goes up untill 10V/div. The XDS3202A is delivered with pre-assembled touch-screen and magnifier function upgrades for free.
The XDS series is (same as with the SDS series) equipped with a VGA port, USB host, USB device, LAN, AUX and IR. SCPI is also supported for remote operation and reading out values. The scope also has standard multi-trigger support.
Specifications
| Bandwidth | 200 MHz |
| Sample rate | 1 GSa/s (14-bit) |
| Memory depth | 40 MPts |
| Waveform capture rate | 75 000 Wfm/s |
| Rise time | ≤ 1.7 ns |
| Channels | 2 |
| Horizontal scale | 1 ns/div - 1000s/div |
| Vertical resolution | 1 mV/div - 10 V/div |
| Maximum voltage | 1 MΩ ≤ 300 Vrms |
| Input impedance | 1 MΩ and 15 pF |
| Connections | USB host, USB device, USB port for PictBridge, trigger, VGA and LAN |
| Display | 8" LCD, 800x600 pixels (Touch-screen) |
| Weight | 2.6 kg |
| Dimensions | 340 x 177 x 90 mm |
Options
The following options are included for free with the XDS3202A:
- VGA
- LAN
- Magnifier
- Touchscreen LCD
The configuration of options cannot be changed.
Accessories:
The Owon XDS2102A comes including the following accesories:
- Power cord
- CD-disc with PC software
- User manual
- USB cable
- 2 probes
- Probe adjuster
Downloads
| Owon XDS series datasheet |  (424.24 KB) | Download |
| Owon XDS series manual | (2.88 MB) | Download |
