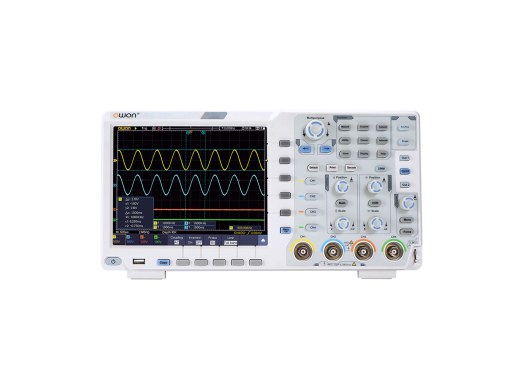

Owon XDS3104 oscilloscope
Details
The XDS3104 from Owon is an oscilloscope in the XDS series with a high waveform capture rate of 70.000wfms/s. This means that this oscilloscope, in comparison with lower sample rate oscilloscopes, can capture the signal with a lot more details.
The scope has 4 channels which can be used separately from each other with a sample rate of 500MSa/s. When only 1 channel is used the sample rate is 1GSa/s. The memory depth of this scope is 40Mpts which means that the scope can store about 100 waveforms.
The XDS3104 has a wide range of built-in meet- and math- functions. In addition, the scope can be triggered in many ways. The display of the XDS3014 is an 8" colour LCD screen on which all signals can be displayed very clearly.
Furthermore, the scope can be connected to a extern device like a PC or monitor via either USB, Trig-out, LAN or VGA.
Specifications
| Bandwidth | 100 MHz |
| Sample rate | 1 GSa/s |
| Waveform capture rate | 70000 wfms/s |
| Channels | 4 |
| Rise Time | ≤ 3.5 ns |
| Horizontal scale | 1 ns/div - 1000s/div |
| Vertical scale | 1 mV/div - 10V/div |
| Input impedance | 1 MΩ |
| Decoding options | RS232, l2C, SPI, CAN |
| Memory depth | 10Mpts/channel |
| Display | 8" color LCD (800x600 Px, Touch-screen) |
| Connectivity | USB, Trig-out, LAN, VGA |
| Dimensions | 340 x 177 x 90 mm |
| Weight | 2.6 kg |
Options
The following options are included for free with the XDS3104:
- VGA
- LAN
- Touchscreen LCD
- I2C, SPI, RS232, CAN
The configuration of options cannot be changed.
Accesories:
The Owon XDS3014 comes with:- Power cord
- Quick guide
- CD-disc with PC software
- USB cable
- Probe (1 per channel)
