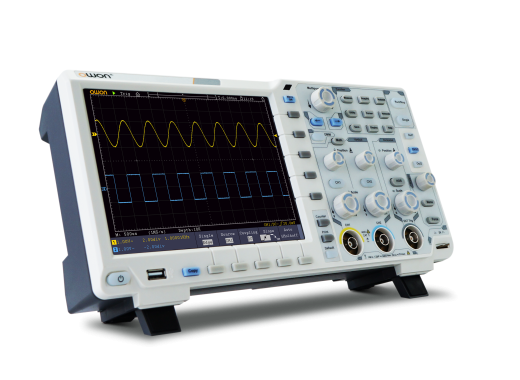

Owon XDS3102A oscilloscope
Details
The XDS series is Owon's new product line based on the successful SDS series. The performance is excellent, with a memory depth of 40 Megapoints and 75 000 waveforms per second update speed.
The most striking feature is the ability to choose the A-version, which has a 12 bit ADC on board instead of the usual 8 bit. The 8-bit variant can be seen here. Only more resolution wouldn't have any added value if we didn't also work on the noise floor. And Owon didn't forget this. The vertical sensitivity starts at this scope not at 5mV but at 1mV, and continues to 10V/div.
Difference 8-bit and 12-bit ADC
In the video below you can see the difference between an 8-bit converter and a 12-bit analog-digital converter.
Specifications
| Bandwidth | 100 MHz |
| Vertical resolution | 12 bits |
| Sample rate | 500 MSa/s |
| Memory depth | 40 MPts |
| Waveform capture rate | up to 75 000 Wfm/s |
| Rise time | ≤ 3.5 ns |
| Channels | 2 |
| Horizontal scale | 2 ns/div - 1000s/div |
| Vertical resolution | 1 mV/div - 10 V/div |
| Maximum voltage | 300V RMS |
| Input impedance | 1 MΩ and 15 pF |
| Connections | VGA, USB host, USB device, USB port for PictBridge, trigger and LAN |
| Display | 8" LCD, 800x600 pixels (Touch-screen) |
| Weight | 2.6 kg |
| Dimensions | 340 x 177 x 90 mm |
Options
The following options are included for free with the XDS3102:
- VGA
- LAN
- Touchscreen LCD
The configuration of options cannot be changed.
Accessories:
The Owon XDS3102 series oscilloscopes are supplied with the following accessories:
- Power cord
- CD Rom with PC software
- Manual
- USB cable
- 2 probes
