Details

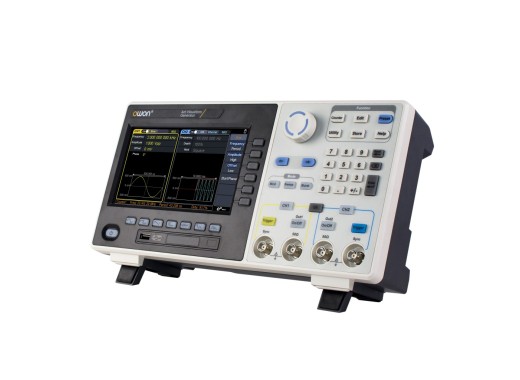

The Owon XDG2080 is a 2-channel function generator that can generate signals with a maximum frequency of 80 MHz. The generators of the XDG2000 series have an excellent resolution of 1 µHz and have a sample rate of 500 MSa/s, which is more than enough for normal usage.
The XDG2080 is capable of generating 6 standard waveforms and 150 arbitrary waveforms. With the included PC software you can write advanced functions up to 10 million points. These waveforms can be stored on the function generator's internal memory via USB or LAN using a PC. The XDG2000 series also supports SCPI commands and LabView.
The function generator has an integrated high-quality frequency counter that can operate from 100 mHz to 200 MHz.

Model overview

We at Eleshop offer the 35, 60, 80 and 100 MHz models of the XDG2000 series.

Model XDG2035 XDG2060 XDG2080 XDG2100
Maximum output frequency 35 MHz 60 MHz 80 MHz 100 MHz
Price 289.21 €289.21 Excl. VAT 390.04 €390.04 Excl. VAT 429.71 €429.71 Excl. VAT 479.3 €479.30 Excl. VAT

Specifications

Vertical resolution 14 bits
Frequency range 1 µHz - 80 MHz
Number of channels 2
Sample rate 500 MSa/s
Vertical resolution 14 bits
Waveform length 2 - 10M points
Display 7" (800 x 480) LCD
Output impedance 50 Ω
Inbuilt functions Sine, Square, Pulse, Ramp, Noise, Harmonic
Modulation functions AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK, PWM, SUM
Connectivity USB (Host & Device), COM, LAN
Dimensions 340 x 177 x 90 mm
Weight 2.5 kg

Accessories

The Owon XDG2080 comes with:

  • Power cord
  • CD
  • User manual
  • USB cable
  • BNC cable

Pros and cons

  • 10M points waveform length
  • SCPI and LabView supported
